EEPROM emulation and sensing using MSP430 FRAM microcontroller

TIDM-FRAM-EEPROM

Overview

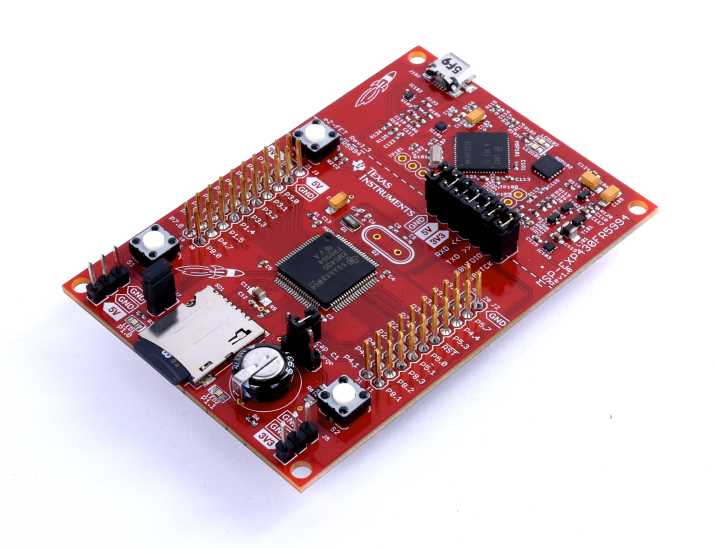

This TI reference design describes how to emulate an EEPROM using ferroelectric random access memory (FRAM) technology on an MSP430™ ultra-low power microcontroller (MCU) along with other sensing capabilities that can be enabled when using the MCU. combine. This reference design supports connection to the host processor via both I ² C and SPI interfaces, allowing for multiple slave addressing.

characteristic

● Provides flexible electronically erasable programmable read-only memory (EEPROM) partition allocation
● Support I ² C interface (100kHz or 400kHz) or serial peripheral interface (SPI) (up to 1Mbps)
● Support independent EEPROM application
● Supports custom sensing solutions that can utilize multiple slave addressing
● Provide low power consumption
