H-bridge drive circuits for automotive and industrial DC motors

Overview

• Introduction to application of H-bridge DC motor drive circuit combining TPD7212F/FN and TPD7104AF with power MOSFET
• Explanation of overcurrent detection function and power connection protection function using TPD7104AF
• Explanation of protection function using TPD7212F/FN
• Operation through SPICE simulation Confirmed

Features

• H-bridge DC motor drive circuit using TPD7212/FN and power MOSFET TPW1R104PB
• Various protection circuits for automotive and power MOSFET TPW1R104PB using TPD7104AF
• Input voltage: 12V
• Overcurrent detection function
• Power supply reverse connection protection function
• Output cutoff function
• Output voltage monitoring function
• Charge pump circuit voltage monitoring function

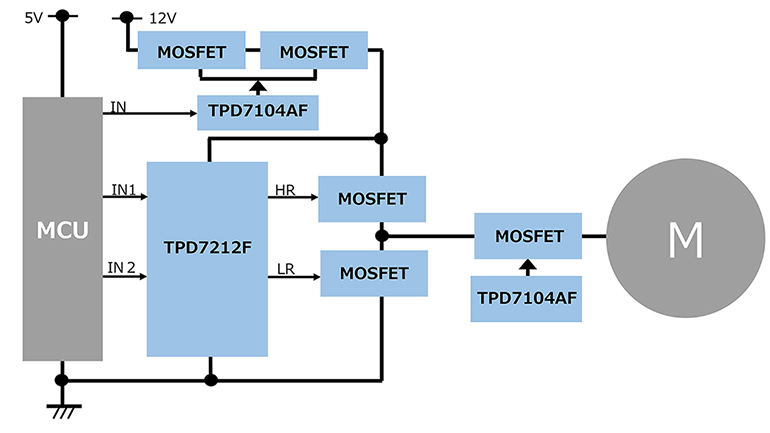

Blockdiagram
