QN9080DK: Highly scalable QN908x application development platform

Overview

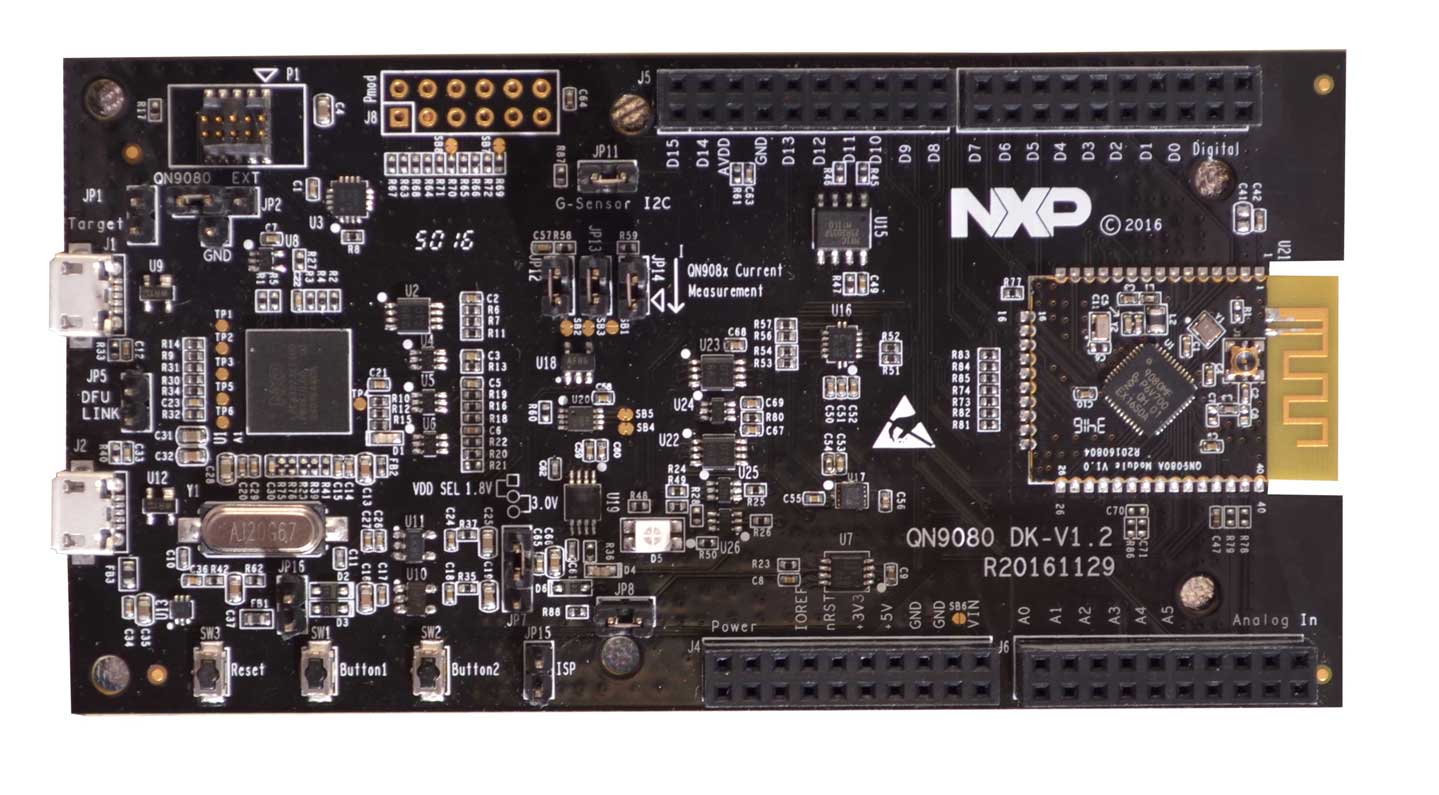

The QN9080DK board is designed to help you quickly start projects based on the NXP ^{QN908x BLE SOC.}

The QN9080DK board integrates buttons, piezoelectric buzzers, and LEDs for easy chip reset and indication of chip status. This DK board also provides many useful interfaces, such as a USB port for UART communication and JLink debugging.
