Capacitive touch thermostat

Overview

The NuMicro® ML56 series has a wealth of peripherals to implement this capacitive touch thermostat. This reference design can provide ambient temperature sensing, touch control and LCD display of temperature and time information.

Solution Features
- Supports 9 cm x 6 cm HTN LCD
- Supports 13 capacitive touch sensors
- Provides a graphical interface adjustment tool to configure capacitive touch sensor parameters and adjust sensitivity

MCU Features
ML56SD1AE (1T 8051 core microcontroller )
- Single-chip solution integrating capacitive touch and LCD driving functions
- Capacitive touch function
- IEC 61000-4-6 10 Vrms
- High touch sensitivity and high anti-interference ability
- LCD driving function
- Built-in charge pump , voltage range 1.8V~5.5V
- can drive 10 cm x 10 cm large screen
- LCD display low power consumption

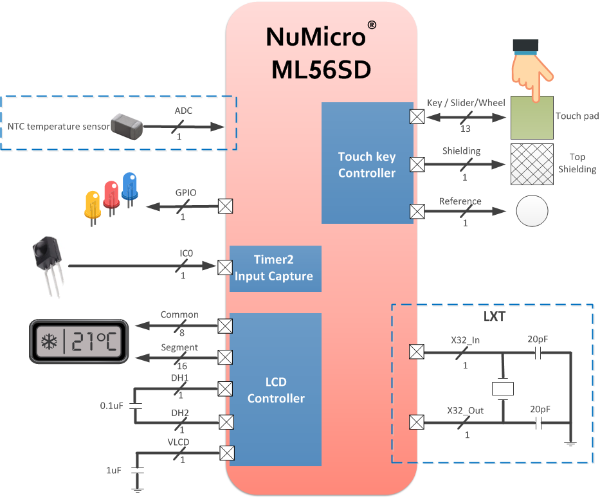

Blockdiagram
