FRDM33926PNBEVM: Freedom Kit - MC33926, 5.0 A Throttle H-B

Overview

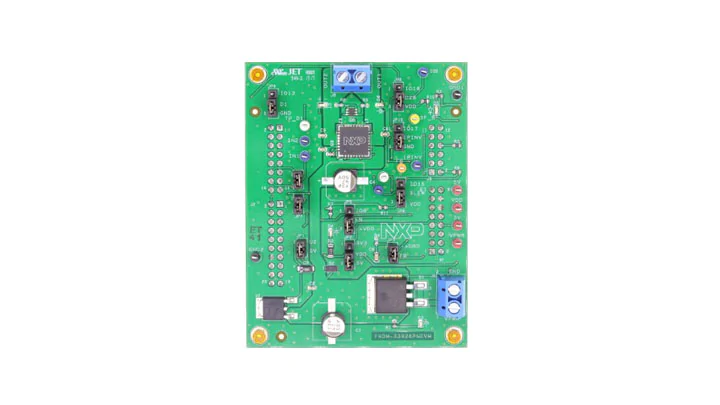

The Evaluation Kit features the 33926, which is a monolithic H-Bridge Power IC designed primarily for automotive electronic throttle control but is applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification. The 33926 can control inductive loads with currents up to 5.0 A peak. RMS current capability is subject to the degree of heat-sinking provided to the device package. Internal peak-current limiting (regulation) is activated at load currents above 6.5 A ± 1.5 A. Output loads can be pulse-width modulated (PWM’ed) at frequencies up to 20 kHz. Supported with FRDM-KL25Z
