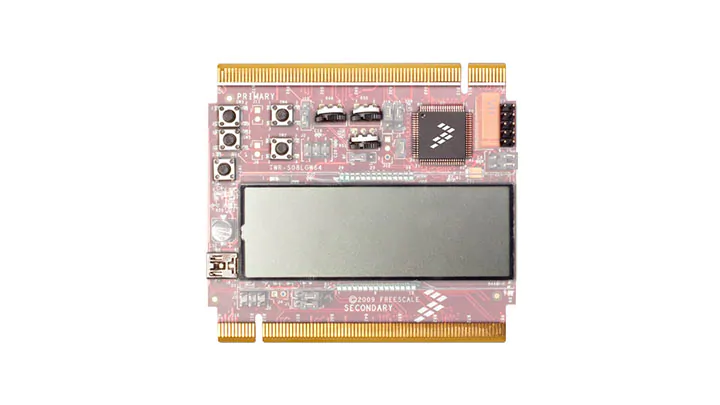

TWR-S08GW64: MC9S08GW 8-bit segment LCD tower system module

Overview

The TWR-S08GW64 module is a development board for the MC9S08GW64 segment LCD controller. The MC9S08GW64 has an integrated dual 16-bit ADC, low-power position counter and independent real-time clock, which highlights the low-power characteristics of the MCU. Integrated OSBDM allows designers to communicate with the board and target device using a single USB cable.

The TWR-S08GW64 operates as a standalone debug tool and can also be combined and used as part of the modular Tower^® System development platform.

MoreCollapse

Design Files

Design Tools & Files:TWR-S08GW64 Schematics
