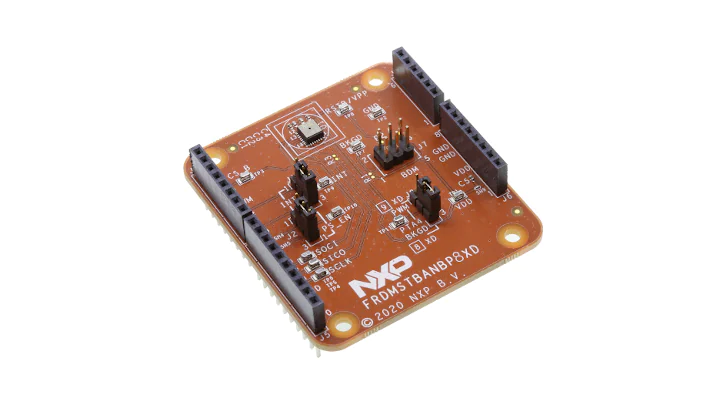

FRDMSTBANBP8XD: Freedom Shield Evaluation Board

The FRDMSTBANBP8XD evaluation board contains the NBP8FD4T1 battery pressure monitoring sensor, providing an intuitive method for pressure sensor evaluation.

Overview

The FRDMSTBANBP8XD evaluation board consists of a fully integrated battery pressure monitoring sensor (BPMS) that integrates an 8-bit central processing unit (CPU) and firmware provided by NXP to create a ready-to-use pressure sensor. The battery pressure monitoring sensor has a built-in MCU capable of sensing pressure changes, making configuration-based decisions, and acting on this decision while providing this information to the host system.
Target Application

Energy Storage System - Overvoltage Fault Monitoring
Traction Battery Pressure Monitoring Overvoltage Warning
Battery Management System
Operating Status: Battery Pack Drop Detection

Design Files

Documentation

Introduction to the FRDMSTBANBP8XD Shield Board - User Manual
