Smart plug reference design based on BLUENRG-M2SP

The STDES-BLUEPLUG2 is a reference design for home-automation and Internet of Things (IoT) applications.

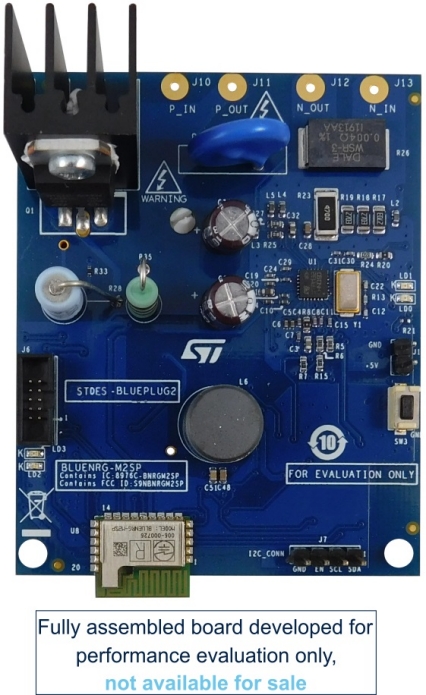

[STDES-BLUEPLUG2 IMAGE]
The on-board BLUENRG-M2SP is compliant with Bluetooth Low Energy (BLE) specification 5.2 to allow secure communication of metering data from specific electrical loads to a smart phone with BLE support.
It supports multiple roles simultaneously and can act at the same time as Bluetooth smart master and slave device.
The device current consumption on AC mains is 3 to 7 mA.
The device acts as BLE peripheral device which can be connected to any smart device using the Android ST BLE PLUG app (available for free download on Google Play) to control and monitor the load and its energy parameters.
The app features load ON/OFF turning, scheduling, dimming and metering parameters.
The STDES-BLUEPLUG2 embeds an STPM32 metering chip for high accuracy measurement of power and energy in power line systems using shunt current sensors, a three-terminal TRIAC which controls the current through AC switching for various electrical system applications, and a non-isolated buck converter supply based on the VIPER06XS. This type of supply is ideal for the applications (like ST BLE PLUG) where a large amount of current is not needed and a small form factor is required.
The STDES-BLUEPLUG2 is a fully assembled board developed for performance evaluation only, not available for sale.

所有功能
Smart Energy Meter design with wireless connectivity
BLE (Bluetooth Low Energy) v5.2 connectivity to:
control (turning ON/OFF)
display metering parameters
NFC interface: to configure the design and store the logs
Dimming of light for TRIAC dimmable load rated below 12 A
Rated voltage: 240/120 VAC (typ.)
Rated current: 12 A (typ.)
Power consumption of plug: 0.7 W (max.)
Instantaneous and averaged power
RMS and instantaneous voltage and current
BLUENRG-M2SP module radio certifications:
FCC certification: S9NBNRGM2SP
IC certification: 8976C-BNRGM2SP
