[Passed by actual measurement] Ultra-simple emergency mobile power supply motherboard controlled by IP5305

Overview

Uses single string battery charging and discharging input and output 1A, with 4 LED light power indicator button control switch

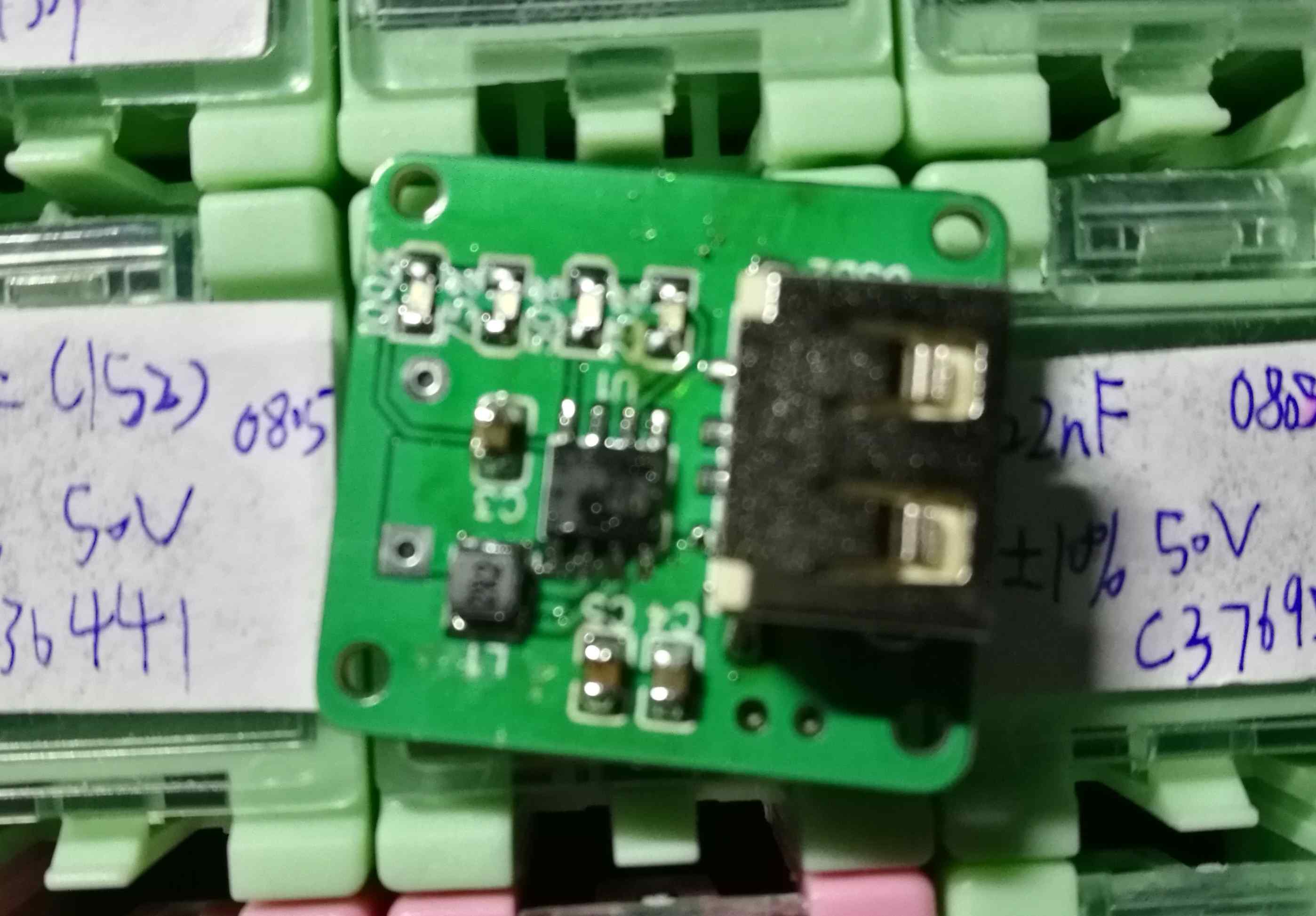

Output over-current, over-voltage, short-circuit protection Input over-voltage, over-charge, over-discharge, over-current discharge protection Machine over-temperature protection ESD 4KV, instantaneous withstand voltage 11V QQ picture 20200302184249.jpg

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
