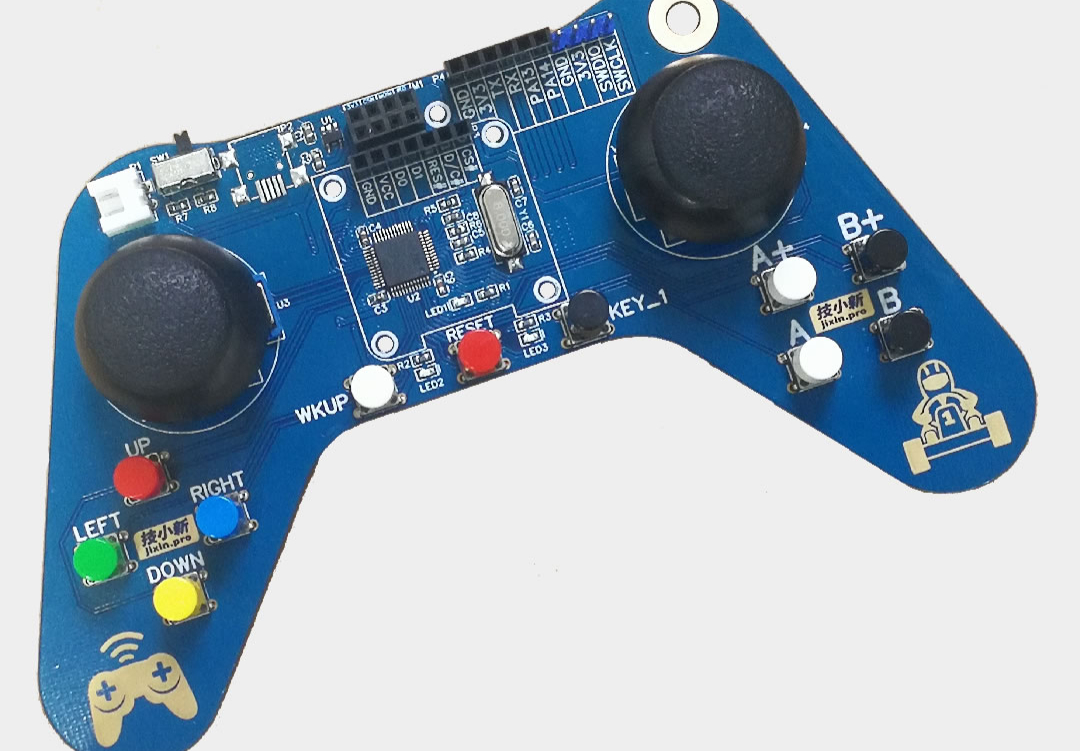

This controller is equipped with the STM32F103C8T6 minimum system, which detects the joystick/ button status and transmits commands through the 2.4G module to achieve remote control.
| symbol | describe |
| P1 | Lithium battery interface: connect 3.7V lithium battery |
| P3 | 0.96'' OLED screen (7Pin) connection base |
| P4 female header | Other serial port transparent transmission mode connectors |
| P4 pin header | STM32 program download (SWD) |
| M1 | 2.4G wireless communication module connector |
