Infrared tracking sensor module-TCRT5000L

Overview

product description

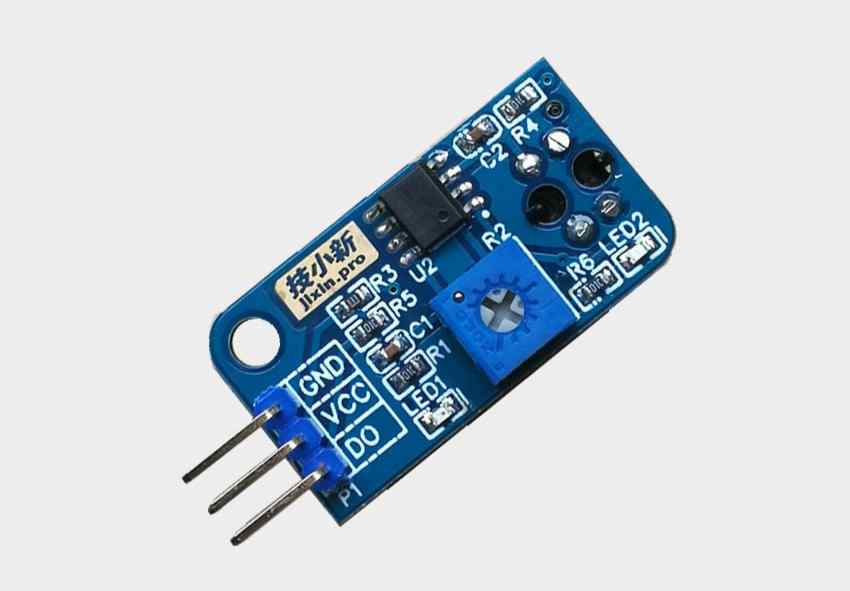

The infrared tracking module is based on the TCRT5000L sensor and can realize infrared tracking, infrared obstacle avoidance, paper detection and other functions. The module is equipped with a power indicator light and a signal indicator light, leading to a digital signal output interface. The measurement distance is adjustable within the range of 1mm~15mm.

Features

Lead to digital signal output pin
The detection distance can be adjusted within a certain range using a rheostat.
Support 3.3V~5V working voltage
With power indicator light and signal indicator light

Pin function table

symbol	GND	VCC	DO
describe	Ground pin	Power input pin	Digital signal output pin
