TTL-RS232 serial communication module SP3232

Overview

product description

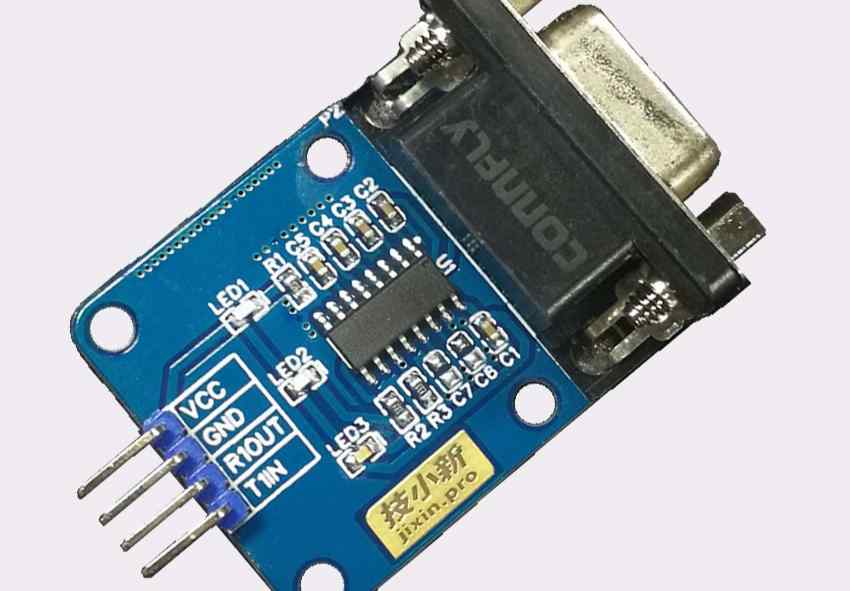

The TTL-RS232 module takes the SP3232EEN chip as the core and is used to achieve mutual conversion between TTL/COMS levels and RS232 levels. Wide operating voltage, compatible with 3.3V and 5V systems. There are LEDs on the TTL/CMOS data input/output terminals to indicate the data sending and receiving status.

Features

Working voltage: 3.0V ~ 5.5V
Chip power consumption: 0.3mA (no load, AMB=+25°, VCC=3.3V)
Maximum baud rate: 235Kbps (RL=3kΩ, CL=1000pF)
Interface: DB9_female, easy to use

Pin function table

symbol	VCC	GND	R1OUT	T1IN
describe	voltage	land	Convert RS232 level to TTL level and output TTL level	Convert TTL level to RS232 level, input TTL level
