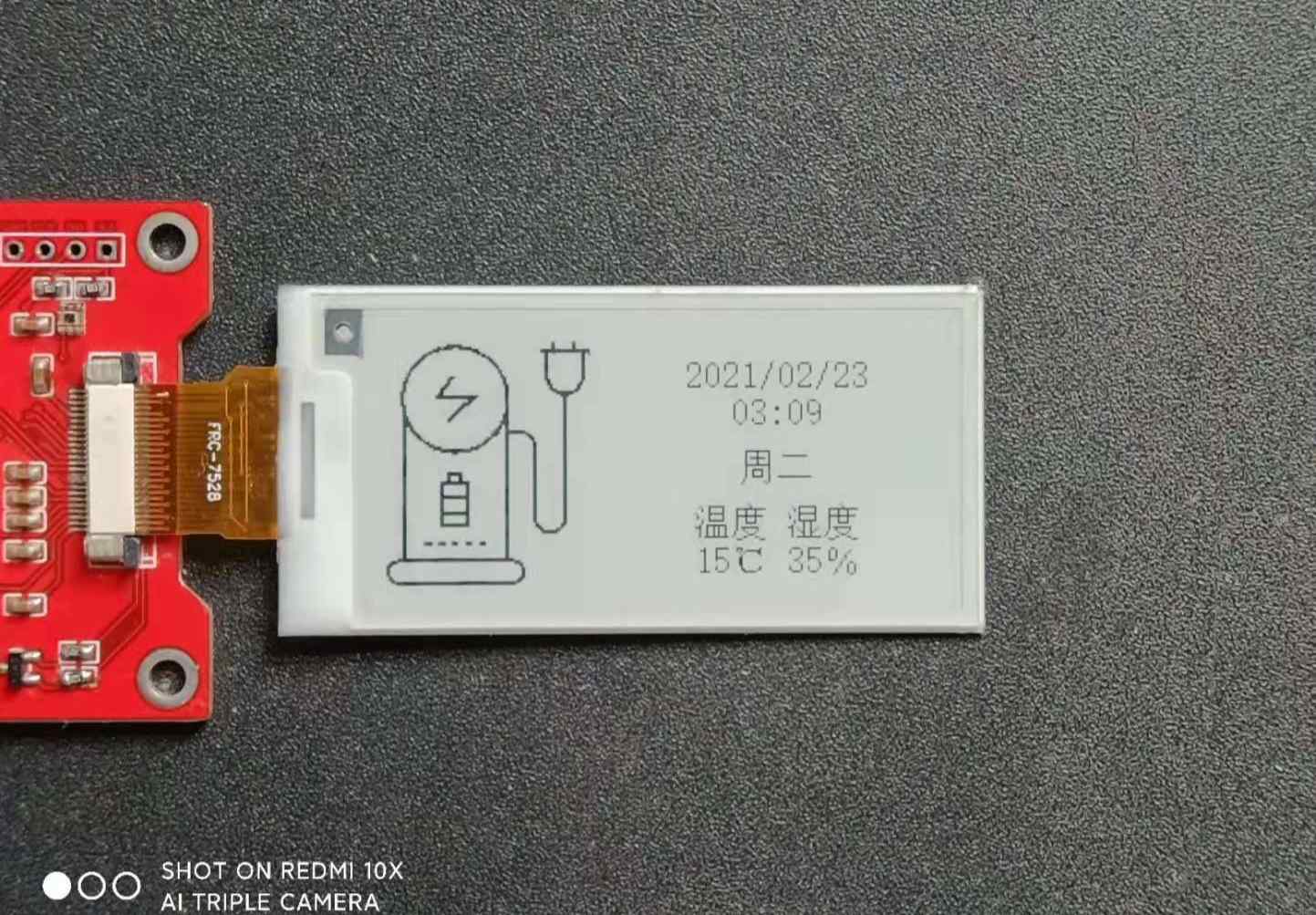

[Hangshun Training Camp] Ink Screen Clock +430542A

Overview

1. Use Hangshun HK32F030 MCU and use ink screen as the display medium.
2. Use AHT20 for temperature and humidity detection.
3. Attach a CAT24C512WI-GT3 memory chip to store additional data.
4. The time and date can be modified by pressing the keys.

5. Since the effect of this project is similar to https://www.bilibili.com/video/BV1wv411Y7cp/, we will not take a separate video display. (There are no low power features in this project)
