C2906374_DS18B20 temperature sensor verification board

Overview

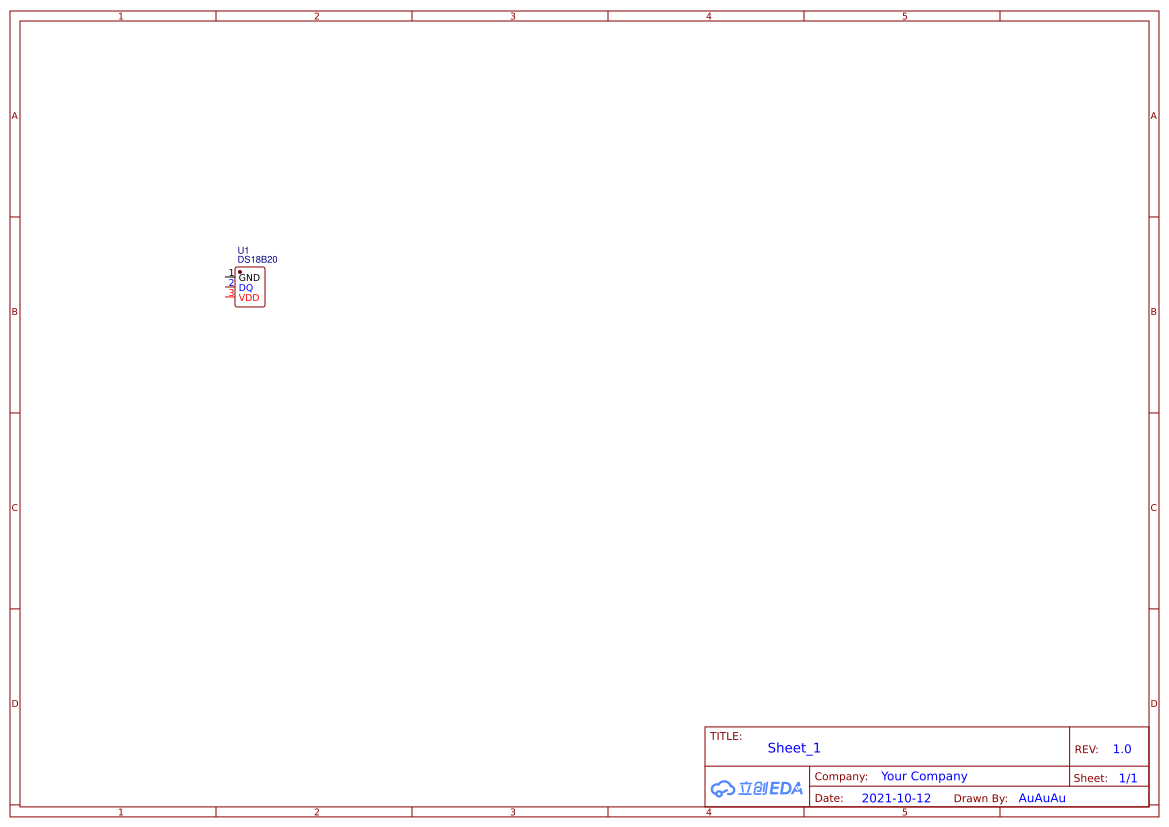

The solution verification board is compatible with three temperature sensors - C376006, C93246, and C695837, and any one of them can be used for temperature measurement; the DQ pin is a single bus communication interface and a power supply port in parasitic mode. In parasitic mode, the VDD port must be connected to ground.
