ADS1232 verification board

Overview

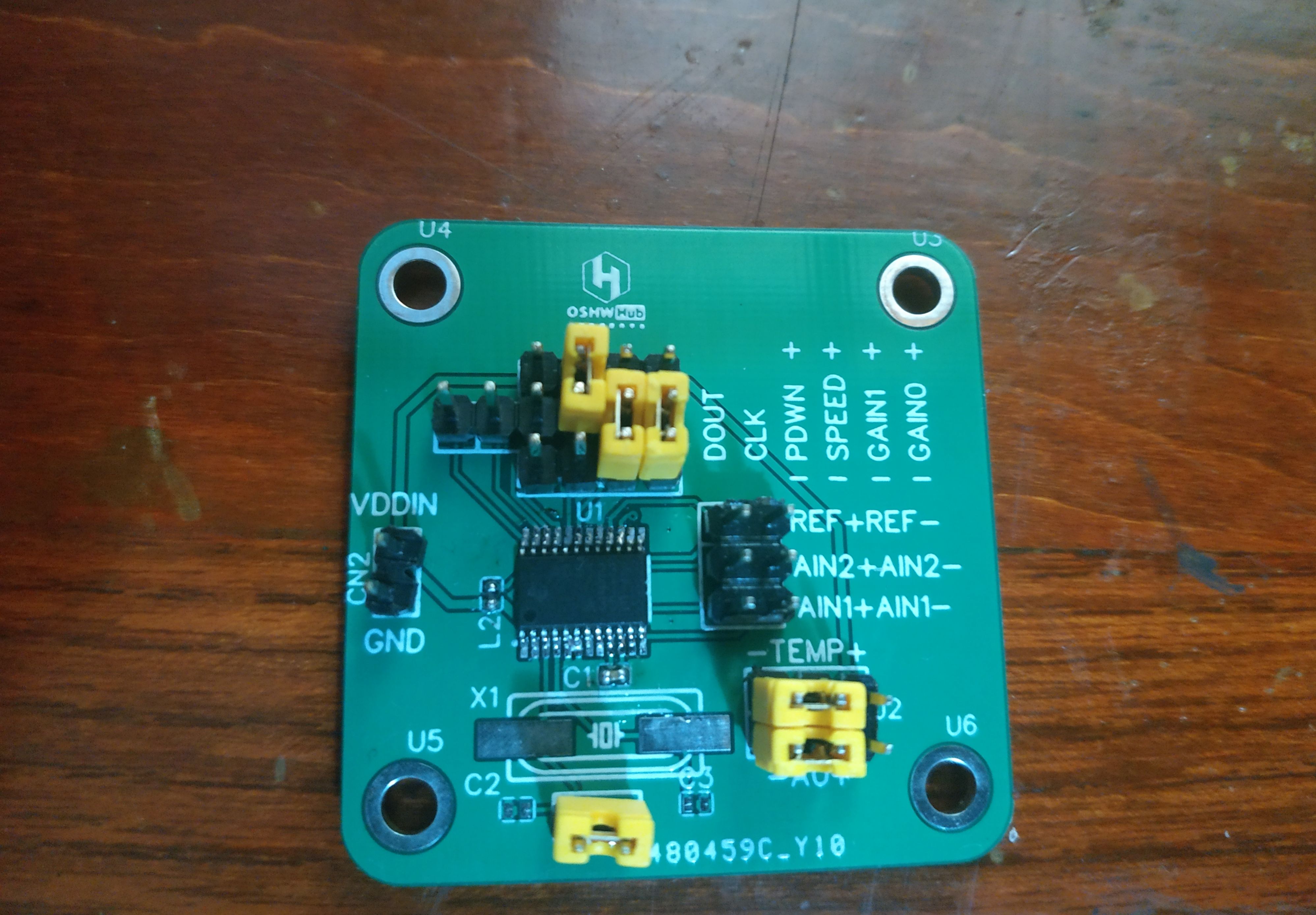

This is a 24-bit differential input ADC solution verification board. The chip uses TI (Texas Instruments) ADS1232. This is a 24-bit differential input analog-to-digital converter. Features:

Low noise, 17nV when working at 10SPS, 44nV when working at 80SPS
Built-in low-drift oscillator, 3% error, optional external oscillator
Optional gain is 1, 2, 64, 128 times
External reference voltage up to 5V
Built-in 2 differential inputs with temperature sensor
Simple digital serial interface
The supply voltage is 2.7-5.3V
Temperature range -40°C to 105°C

Typical applications: weight scale, strain measurement, pressure sensor Typical application example circuit: For the weight scale Weight scale application.png test, I used the STM32F103 development board, and the wiring method is as follows:

SCLK=====PA6
PDWN=====PA5
DOUT=====PA4
