Lemontree

Iris Cube->TDA1517 amplifier core is compatible with TDA1519

Overview

☆Function verification passed☆

Warning: The BOM is automatically generated and may not match the actual situation. Please do not use the BOM table to place orders directly. Everything is subject to the PCB package and schematic values.

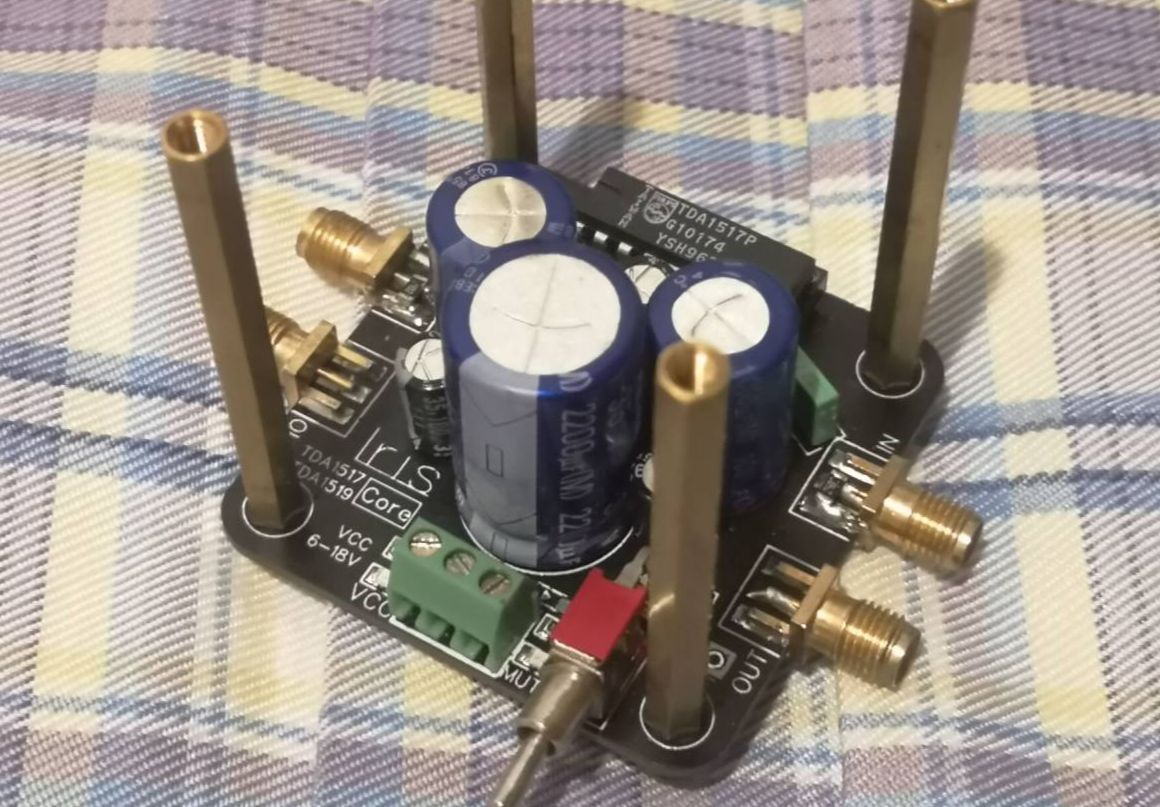

This circuit is suitable for both TDA1517P and TDA1519P. After actual testing (it seems to be a copycat of Philips 1517P and UTC 1519CL, NXP's 1519CTD was bought but not tried), the sound of 1519 is far inferior to that of 1517. It is still recommended to use 1517. As for heat dissipation, don’t worry. After I tested it for a long time, the 1517 was only slightly hot .

TDA1517P is a 2*6W stereo audio power amplifier produced by Philips. It is a fever-grade audio power amplifier IC. 2 is a two-channel. It has mute and standby functions. This circuit is most suitable for small combination speakers and computer peripheral speakers. and other electronic equipment.

Form Factor: Iris Cube Basic Small ( https://oshwhub.com/Iris-Cube/ICBasic )

BTW, I saved money and used HiFi capacitors, but they are still useful (meaning the colors are rich and pleasing to the eye)

You can go to https://oshwhub.com/Iris-Cube/IC_AFSG_ICL8038 to see the stacking effect.
