Iris Cube->0.5mL centrifuge tube rack 63 positions

Overview

Warning: The BOM is automatically generated and may not match the actual situation. Please do not use the BOM table to place orders directly. Everything is subject to the PCB package and schematic values.

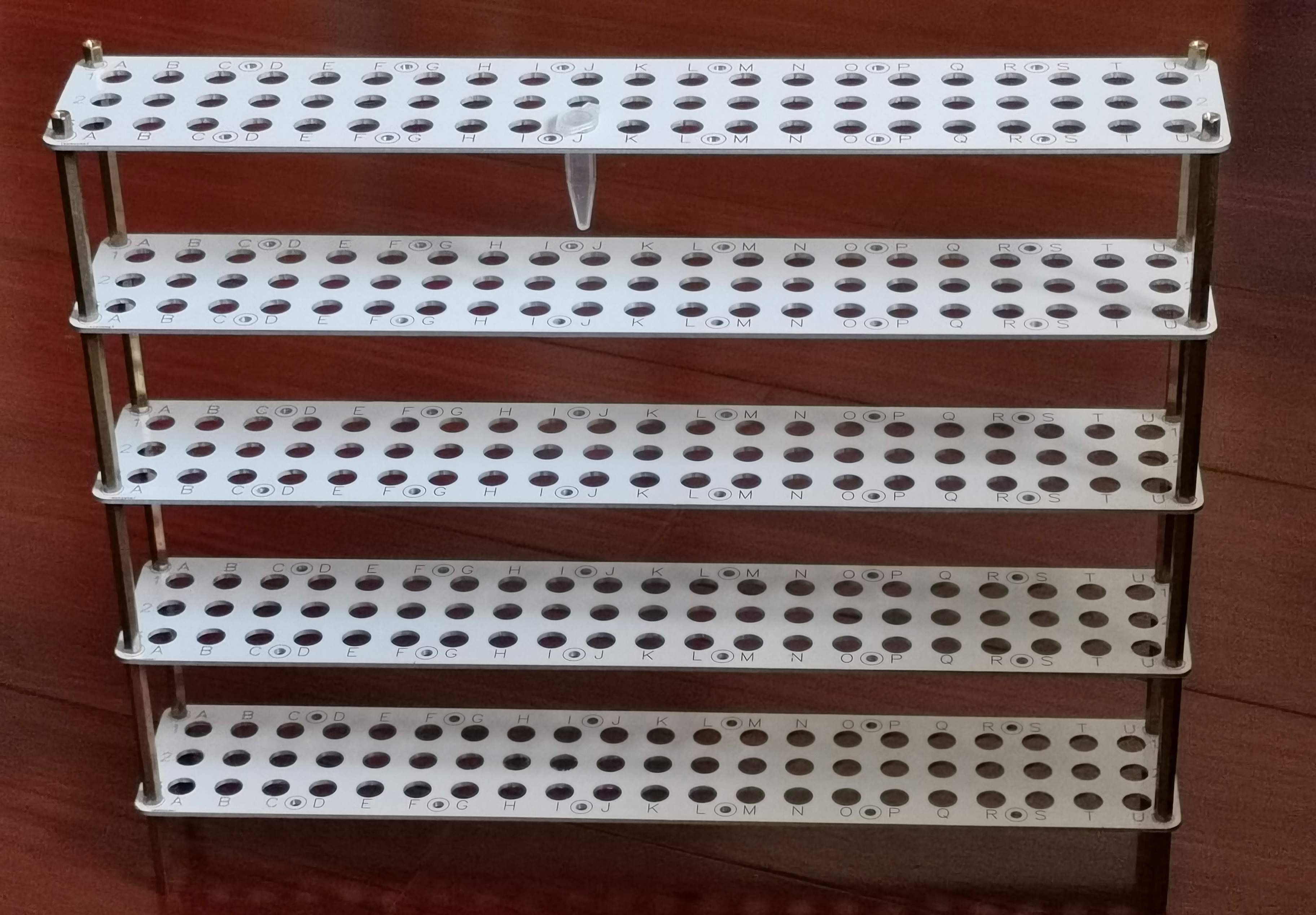

Centrifuge tube rack! It is also compatible with other Iris Cube circuit boards and can be used as a base plate for large-scale assembly projects or as a smart centrifuge tube rack!

The introduction and description are copied from the previous project (.

If I can’t afford copper pillars, I’ll install four. Last time, I complained about the poor quality of my friend's product, but this time I was given free samples of five pieces and eleven pieces. I declared that my friend's product was still very good (

Previous work> Iris Cube->Test tube/10ml blood collection tube rack with 28 positions
