ws2812B-8×32 dot matrix light panel

Overview

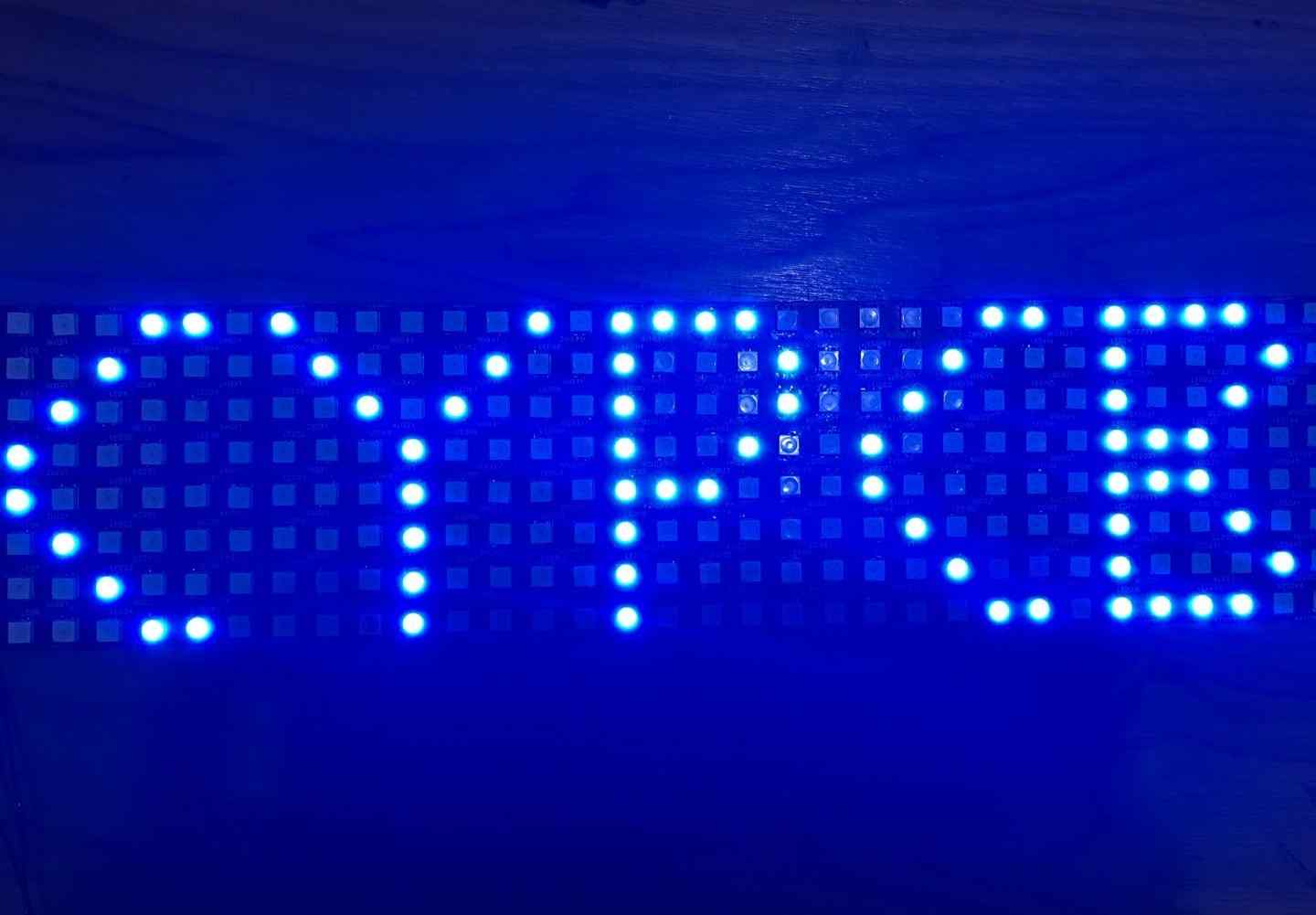

Because I had some ws2812 lamp beads on hand, I drew this WS2812-8×32 dot matrix with reference to the schematic diagram of 1174247739lc . Can be used as a dot matrix screen, for example: awtrix ws2812b lamp bead certain information: 1: The control circuit and RGB chip are integrated in a 5050 package component to form a complete externally controlled pixel. 2: The three primary colors of each pixel can achieve 256 levels of brightness display and complete true color display of 16,777,216 colors. 3: Serial cascade interface, which can receive and decode data through a signal line.

Lichuang EDA was used throughout the entire process. Because there were too many components, drawing was super difficult. If you see it, please give me a thumbs up
