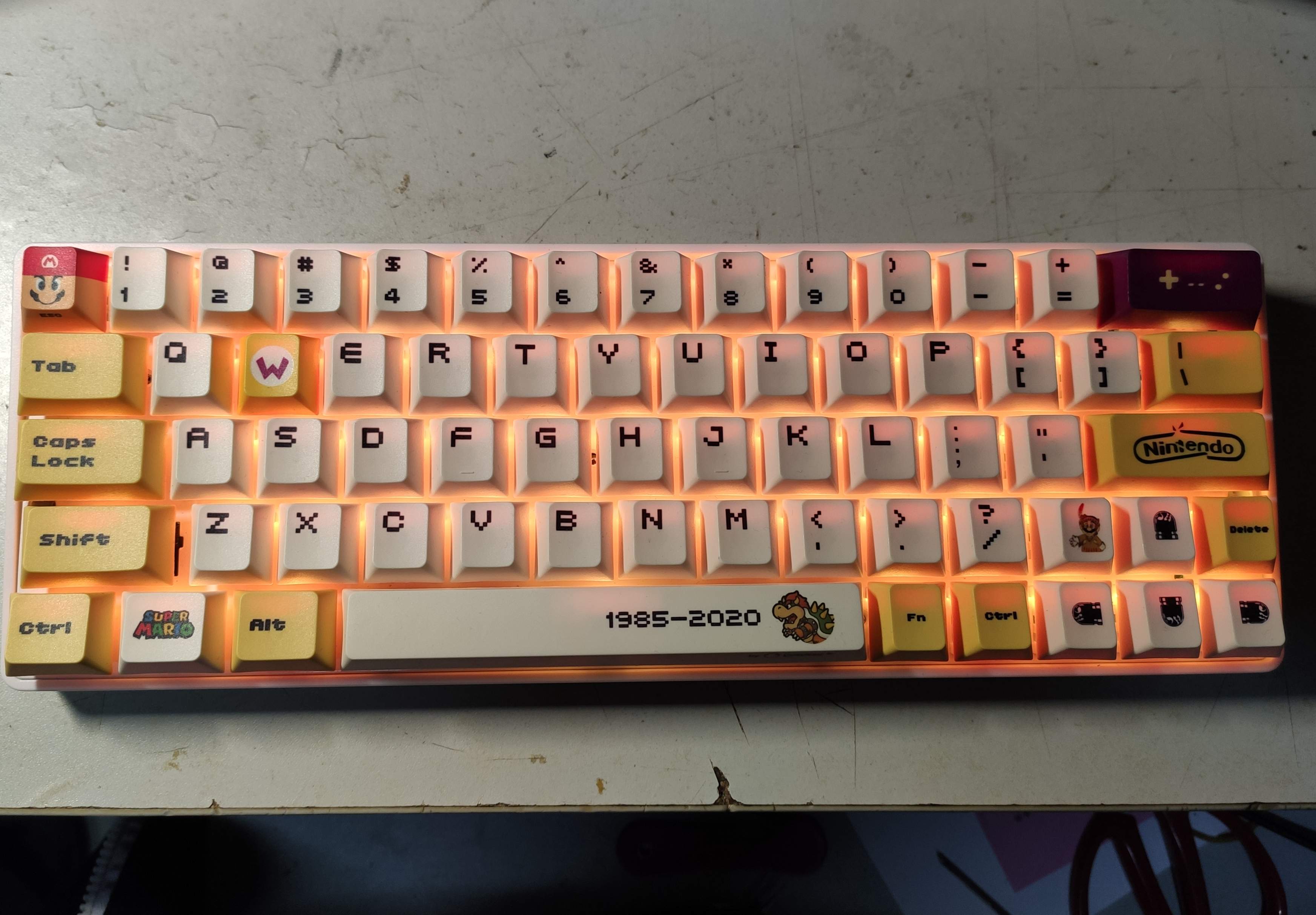

ESP32keyboard (BAT): ESP32 keyboard lithium battery version

Overview

Some changes and upgrades were made compared to the previous project

1. Change the micro-USB interface to Type-C interface

2. Use lithium battery for power supply

3. Change from 61-key keyboard to left-shift 64-key keyboard

4. Changes in keyboard key combinations

The detailed tutorial of the 64-key keyboard is on the CSDN blog https://blog.csdn.net/qq_44817843/category_10700355.html?spm=1001.2014.3001.5482

The method of obtaining the firmware is written in the blog.
