太白金星

(Verified) Graffiti magic light strip

Overview

Project description:

This is a development-free multi-mode magic light strip on Tuya Smart Platform, which can be switched on and off with one click, remote switch and multiple light strip mode functions.

Hardware introduction:

1. Powered by mrcio-usb

2. Use SS210 diodes to prevent reverse connection

3. Using AMS1117-3.3 LOD voltage regulator chip

4.WiFi & Bluetooth module uses Tuya BK7231N CBU module

5. One-touch switch, multiple colors and modes for you to choose from.

Software introduction:

1. Development-free version, Tuya Cloud provides code and services, no need to set up by yourself

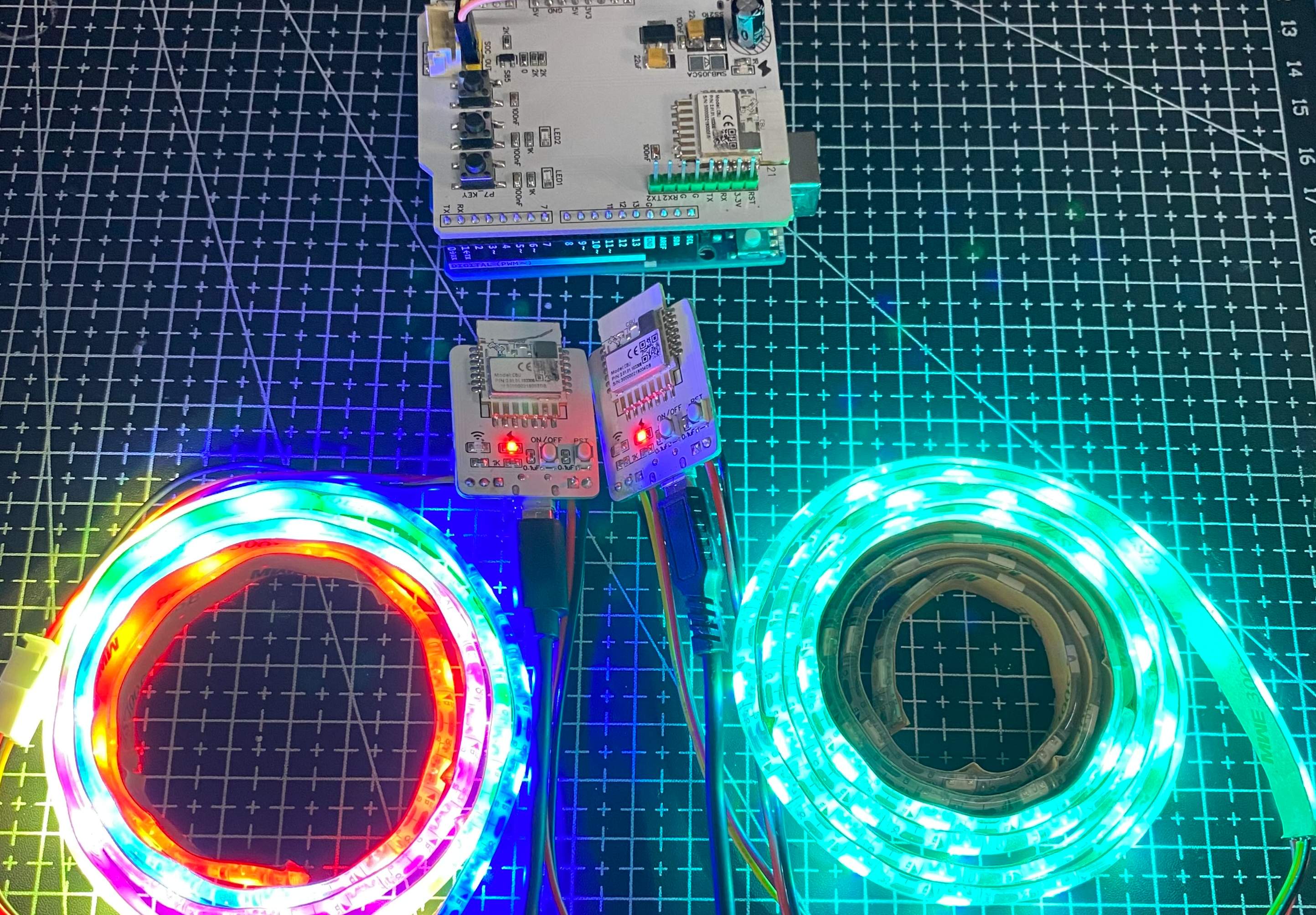

Project pictures:
