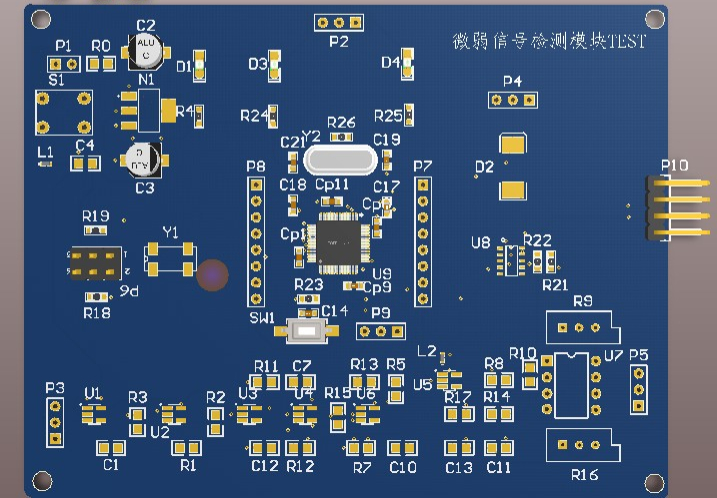

A module designed to measure specific vibration accelerometer signals, based on the STM32F103C8T6 chip. It includes power conversion circuit, load isolation + high-pass filter circuit, full-wave rectification circuit, signal conditioning circuit, AD conversion circuit and AD acquisition circuit. Sourced from course design and has not been physically verified.
