GNSS/GPS low-noise amplifier front-end evaluation board using BGU8007

OM7817

Overview

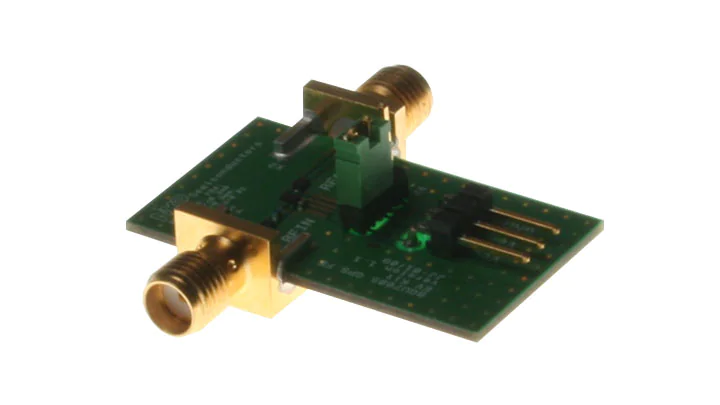

The BGU8007 GNSS front-end evaluation board simplifies evaluation of the BGU8007 LNA for GNSS (GPS, GLONASS, Galileo and Compass) applications. The addition of two surface acoustic wave filters facilitates evaluation of a complete GPS front-end. The evaluation board comes fully assembled with the BGU8007, two identical SAW filters, input inductor series and decoupling capacitors. The evaluation board is equipped with two SMA connectors for input and output connections to RF test equipment. The BGU8007 operates from a single supply of 1.5 V to 2.5 V and consumes approximately 4.7 mA.
