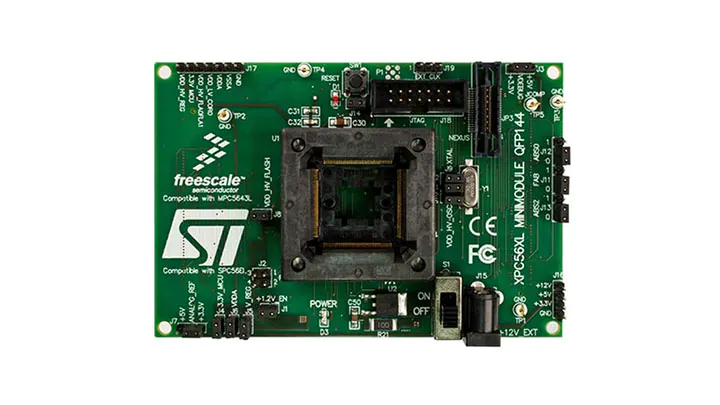

Evaluation board for NXP MPC564xL 32-bit dual-core Power Architecture® MCUs

XKT564L

Overview

The MKT564L evaluation board supports NXP's 32-bit Power Architecture® MPC564xL MCU.

The complete system includes an XPC56xxMB2 mainboard and an MDC564L sub-circuit board that can be plugged into the mainboard.
There are also different sub-circuit boards available for you to choose from for evaluating devices with different specifications in the MPC564xL series MCUs.
Able to achieve full access to the CPU, including all I/O signals of the CPU and motherboard peripherals
The mini module can be used as a stand-alone unit, allowing access to the CPU, but not to I/O pins or any motherboard peripherals

Design Files

Documentation
