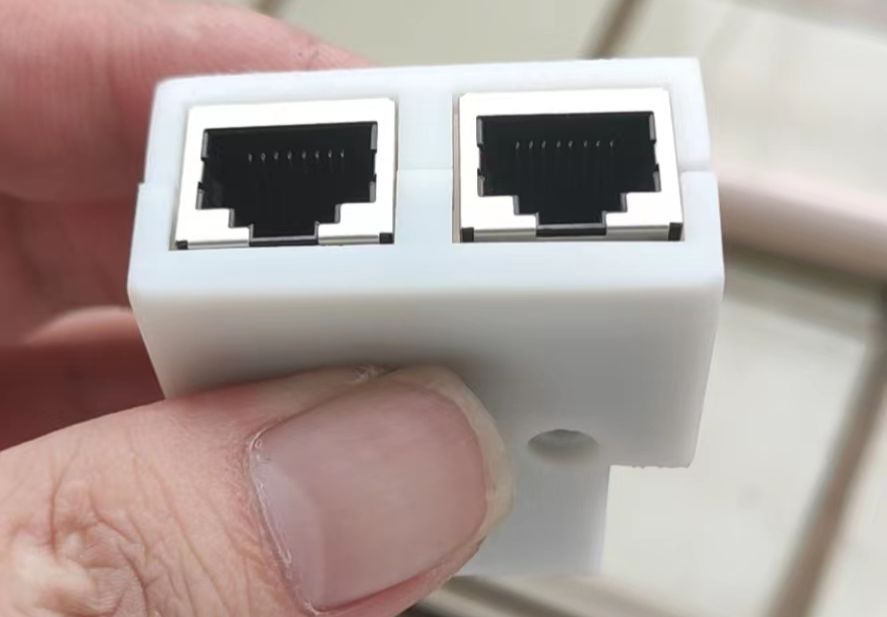

Network cable splitter

Overview

Network cable splitter is suitable for places where there is only one 8-core network cable and two network cables need to be connected. Common such as router + IPTV

Insert the IPTV network cable and Internet access network cable into one end, an 8-core network cable in the middle for transmission, and connect the IPTV network cable and Internet access network cable at the same position on the other end. Since each channel only has 4 cores, the network speed is limited to 100Mbps. In fact, it has the same effect as having two crystal plugs on each end of a network cable, except that this is convenient for plugging in.

Design Files
