【ESP32-S3】1.69-inch touch screen mini controller~

Overview

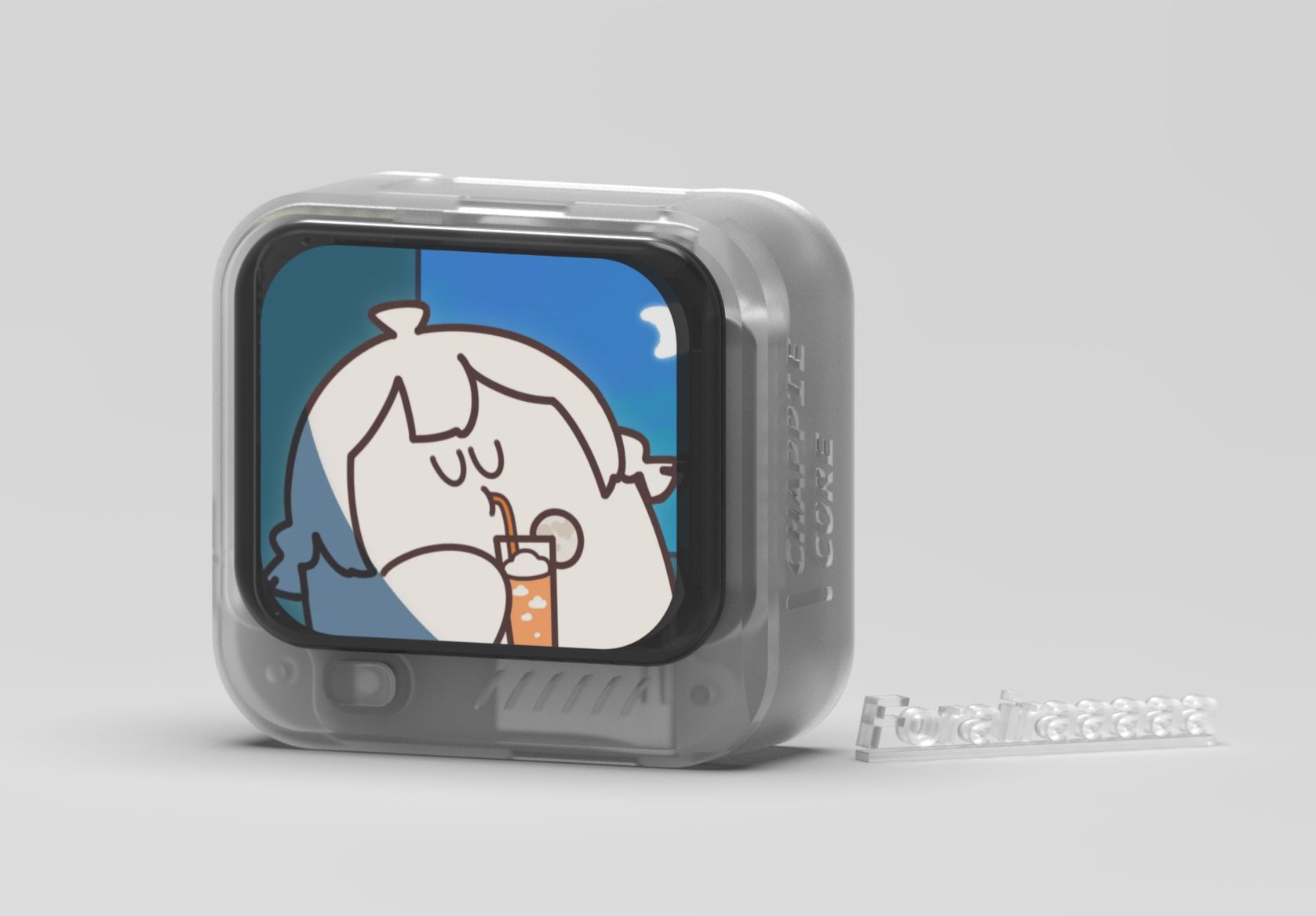

Based on ESP32-S3, it has an onboard 1.69-inch LCD assembly interface, buzzer, SD card slot, AXP173 power management, and double-row female leads to most pins for baseboard expansion functions.

PCB projects, gerber, shells, etc. are all open source~

Github link: https://github.com/Forairaaaaa/Chappie-Core

Video introduction: https://www.bilibili.com/video/BV1dS4y1p7am
