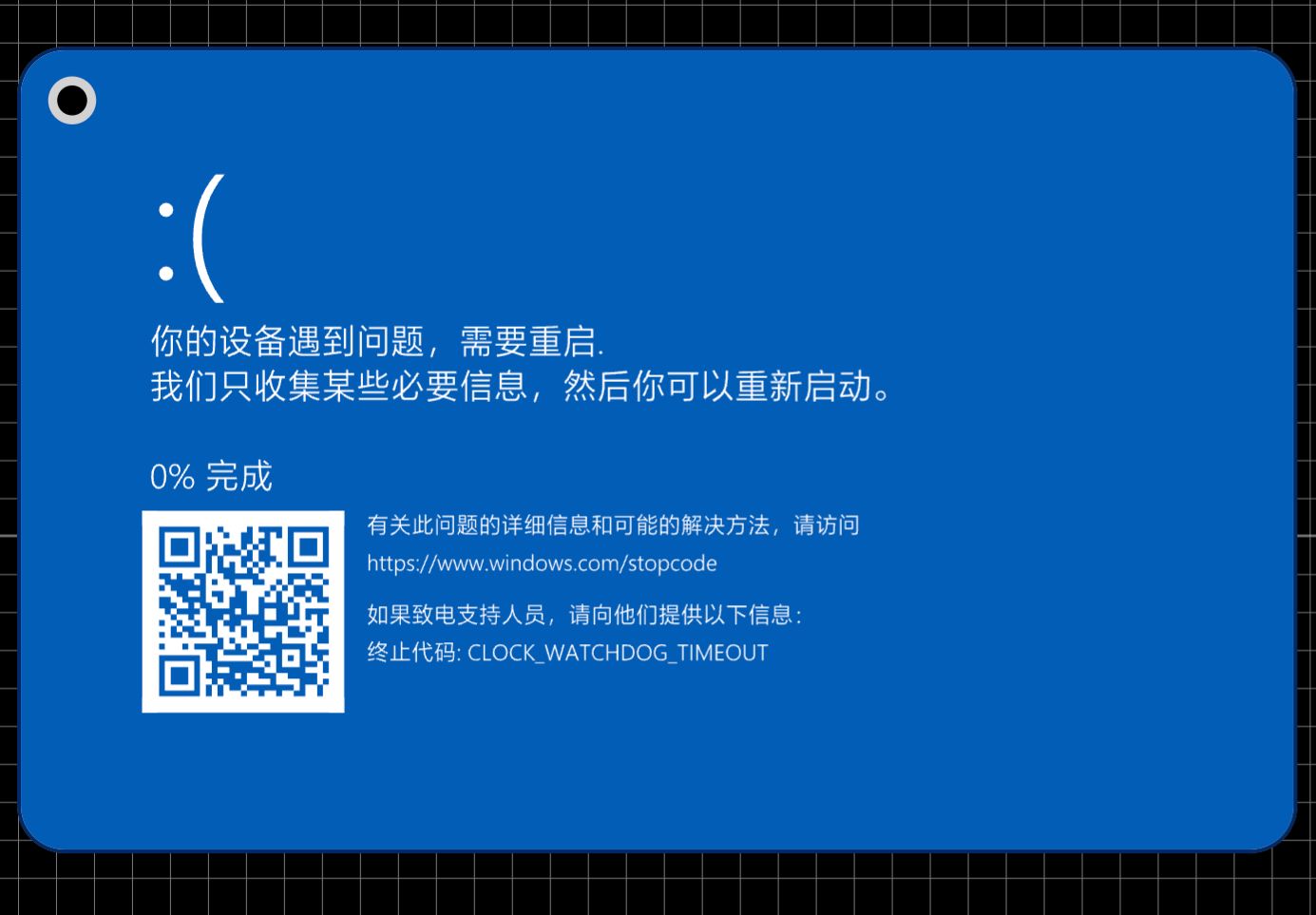

"Incomplete" is produced using the international standard bank card size (85.60×53.98 "54" , R=3.18 ).
A keychain pendant hole is reserved , and you can choose keychains, lanyards, etc. to match.
Update: The default diameter of this hole is 2mm. After proofing, it may not support the keychain well. Please modify it as needed.
Rounded corner design solves the problem of hand-gripping in the original work (no)
It is recommended to use a thickness of 1.0mm and below to make the board easy to put in a wallet and other scenarios.
The JLCJLCJLCJLC characters are reserved in the file . Please adjust the position or delete it as needed, and select the corresponding option when placing an order.
