Ch340C-6P downloader (ESP23/8266)

Overview

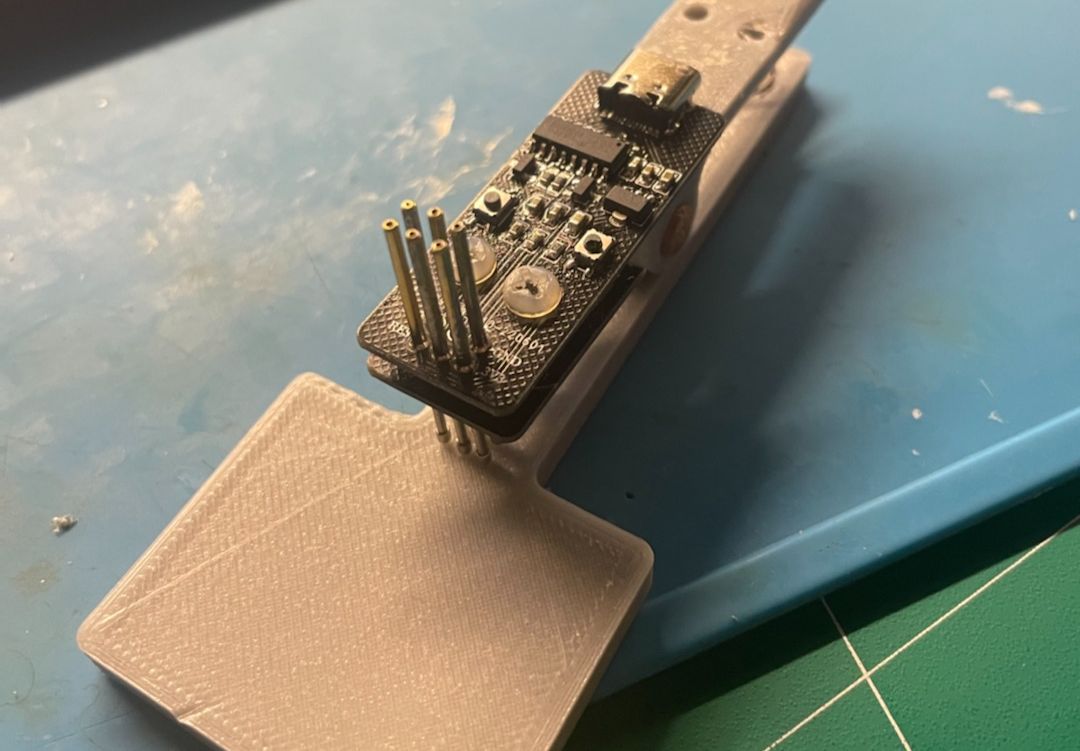

Simple downloader, IO0, RESET (EN), TX, RX, 3V, GND, 6p download, including Reset and Flash buttons.

It is convenient to make other boards without wiring ch340/cp2012, etc.

To add, the TX/RX pins on the CH340C are reversed.

Among the accessories:

Taobao test needle 10 4 yuan wallet mail.

Spring 0.8 mm, 5-50, 5 yuan wallet postage

Nylon screw M3-15, 50 sets of 6 pieces, free shipping
