JFET

M8N GPS integrated 5883 compass

Overview

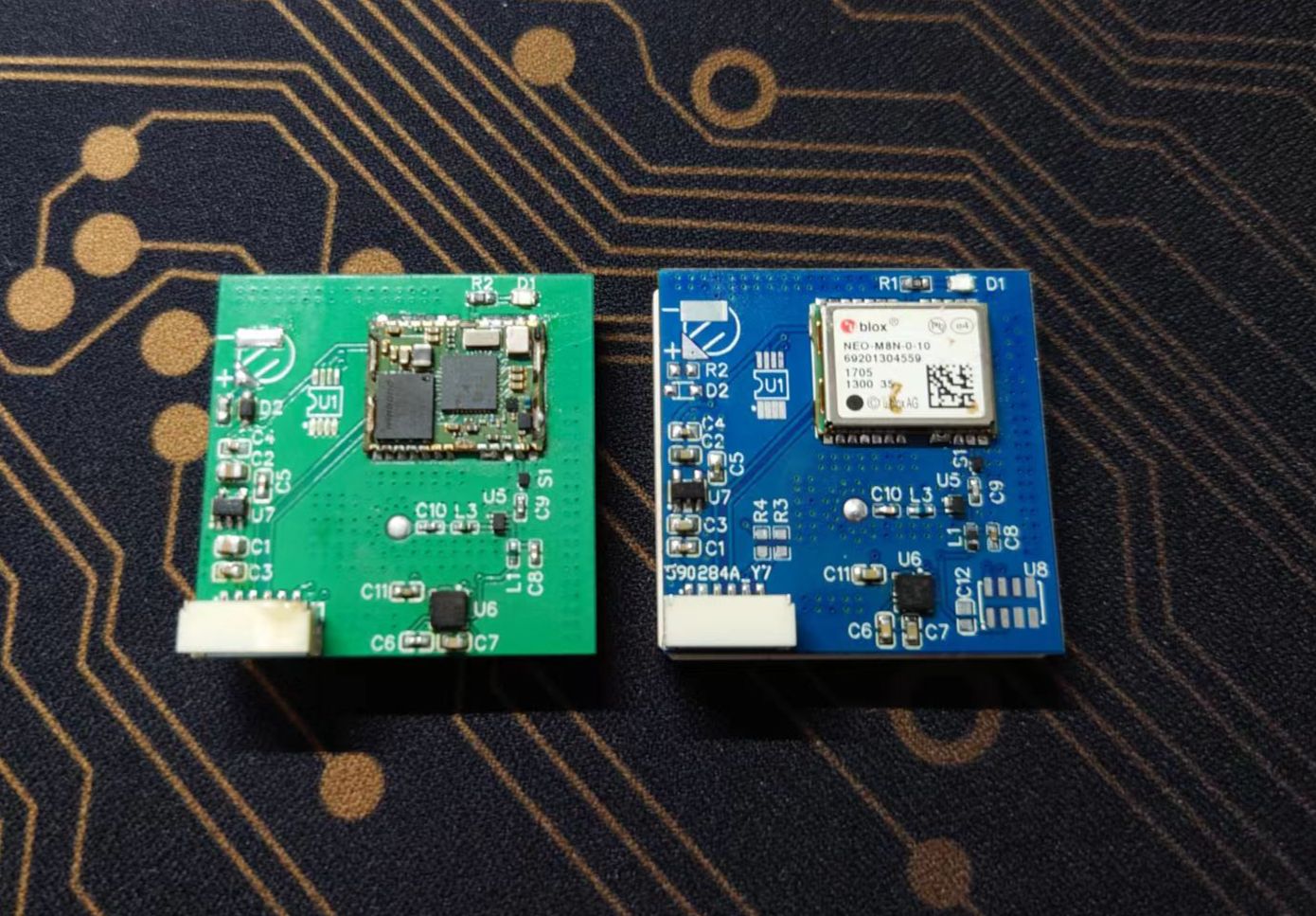

The first version has been board tested

Currently testing version 2

Still for reference only! ! ! !

The GPS module is NEO-M8N-0-10. The imported module has a built-in eeprom. There is no need to weld an external eeprom.
The theoretical calculated value of the RF line impedance is 50Ω. The actual value needs to be measured.

Optional addition of 5883 or 8310 compass, 5611 barometer

Can be used for pixhawk open source flight control

The GPS participating in the comparison test are M8N and M8030

The test method is: cold start at the same location, record the number of satellites and HDOP value of the mp ground station for 60 seconds, the test results are shown in the figure below,

Attachments: data sheet, u center software

Design Files
