FRDMFS6522LAEVM: FS6522, System Basis Chip, DCDC 2.2A Vcore FS1B LDT CAN

Overview

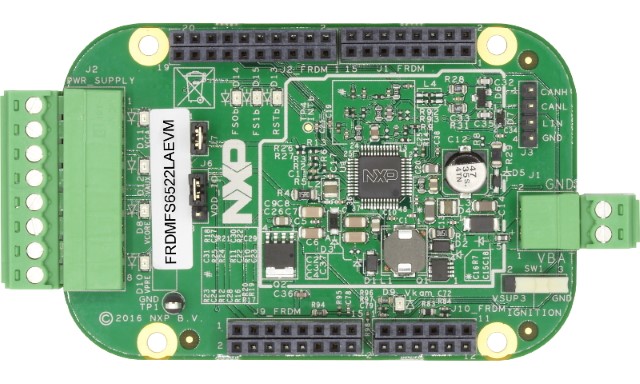

The FRDMFS6522LAEVM evaluation module demonstrates the capabilities of the MC33FS6523, CAN FD & LIN capable, Vcore SMPS regulator with 1.5 A. These safety SBCs comply with the ISO 26262 automotive functional safety standard.

NXP's Analog Product Development Boards provide an easy-to-use platform for evaluating NXP products. The board supports a variety of analog, mixed-signal and power solutions. They integrate monolithic IC system-in-package devices using proven high-capacity SMARTMOS® technology. NXP products help you build advanced systems by extending battery life, shrinking device size, reducing component count, lowering costs and improving performance.

This tool can be used independently. It can be controlled via the KL25Z Freedom circuit board plugged into it and accessed via USB.

MoreCollapse

Design Files

Documentation

FS65 and FS45 System Basis Chips - Fact Sheet
