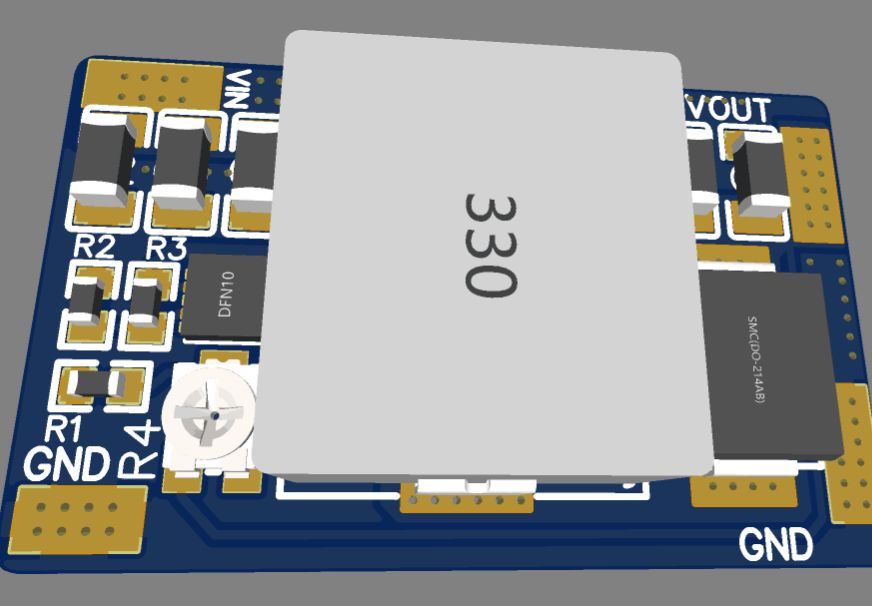

SY7304 DC-DC4A boost adjustable module

Overview

Input voltage: 4.5-9V
Output voltage: 5-33V
The maximum input current does not exceed 4A, and pay attention to heat dissipation measures.
The EN switch control module works as
a pure boost circuit, and the output voltage must not be lower than the input voltage.
Modified from the user Ismartware. https://oshwhub.com/wzw666/LD701_DC7304LKJ_ADJ

Design Files
