SSD1316-128X32 OLED module

Overview

Screen parameters:
Screen: SSD1316
Protocol: SPI protocol
Size: 0.91 inches
Others: The touch pin is led out through the test point.
Test MCU: For ESP32

connection pins, see the source code of the attachment. The U8G2 library is used.
Source code and bin files for direct testing are provided, so you can check whether you have successfully welded.
The pins can be defined by yourself.

#The attachment provides test codes for Arduino and STM32.

Reference picture:

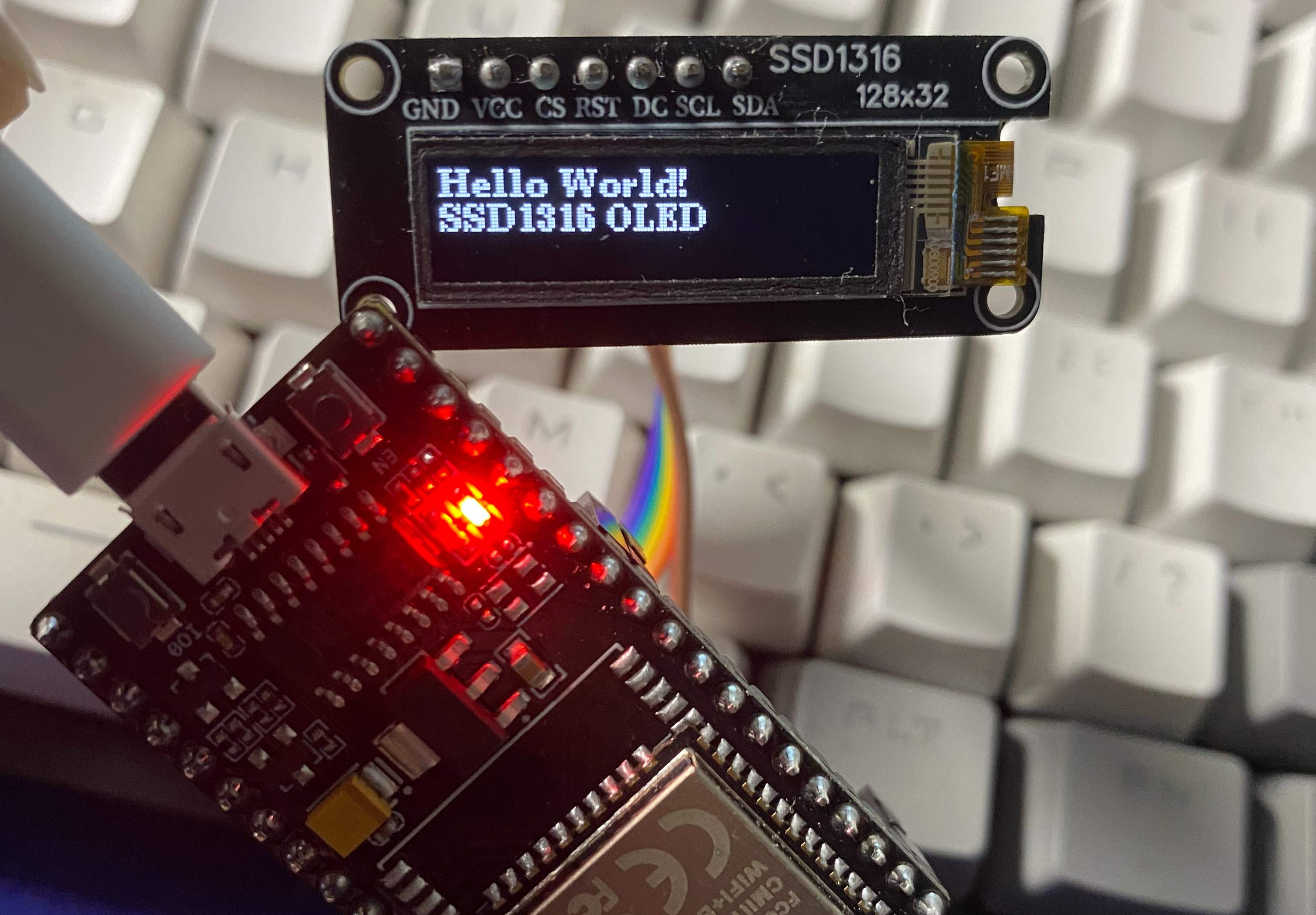

Physical photo: Verified

Reference project:
Laowang 0.8 yuan oled screen
Laowang 0.8 yuan 128x32 OLED display adapter board
