A4950

Overview

It is an extremely easy-to-use DC drive module. It does not have the stupid and thick appearance of the L298N, nor the shortcomings of the low power of the TB6612.
It has been verified that the same size on the market can be directly replaced.

Operating parameters (refer to the original manual):
Designed for pulse width modulated (PWM) control of DC motors, the A4950 is capable of peak output currents to ±3.5 A and operating voltages to 40 V.

Actual working conditions:

RS resistor is connected to 0.25Ω, When the reference voltage input is 5V, the maximum current is limited to 2A;

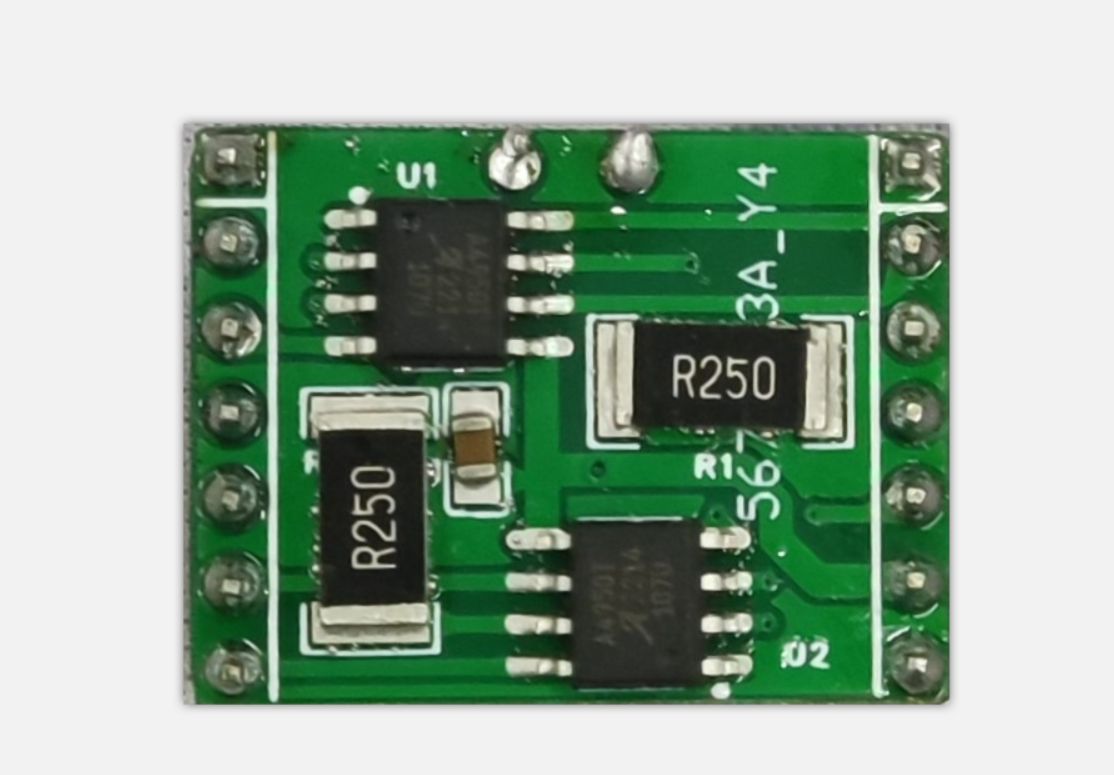

actual picture:

Design Files

C82404_A4950ELJTR-T_2016-10-24.pdf

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
