[Lichuang Development Board] Small Game Console

Overview

*Project description

This project is based on the power amplifier chip FM8002A, the single-cell lithium battery management chip IP5303 and the Lichuang Liangshanpai development board. It is a handheld game console powered by lithium batteries. It can realize functions such as NES game simulation startup, vibration with sound effects, etc.

*The schematic design

master

Lichuang·Liangshanpai development board is based on the GD32F450ZGT6 nationally produced open source development board. It has rich resource interfaces (as shown in the figure) and is equipped with complete supporting video tutorials, document tutorials, and experimental cases.

The screen

uses Jin Yichen's 1.69-inch TFT LCD display 240x280, the driver solution is ST7789V, and SPI communication is used.
The specific parameters are as follows:

This project also uses EEPROM to provide external font files for the main program. The chip is M24C02, which communicates using IIC. The circuit is as follows:

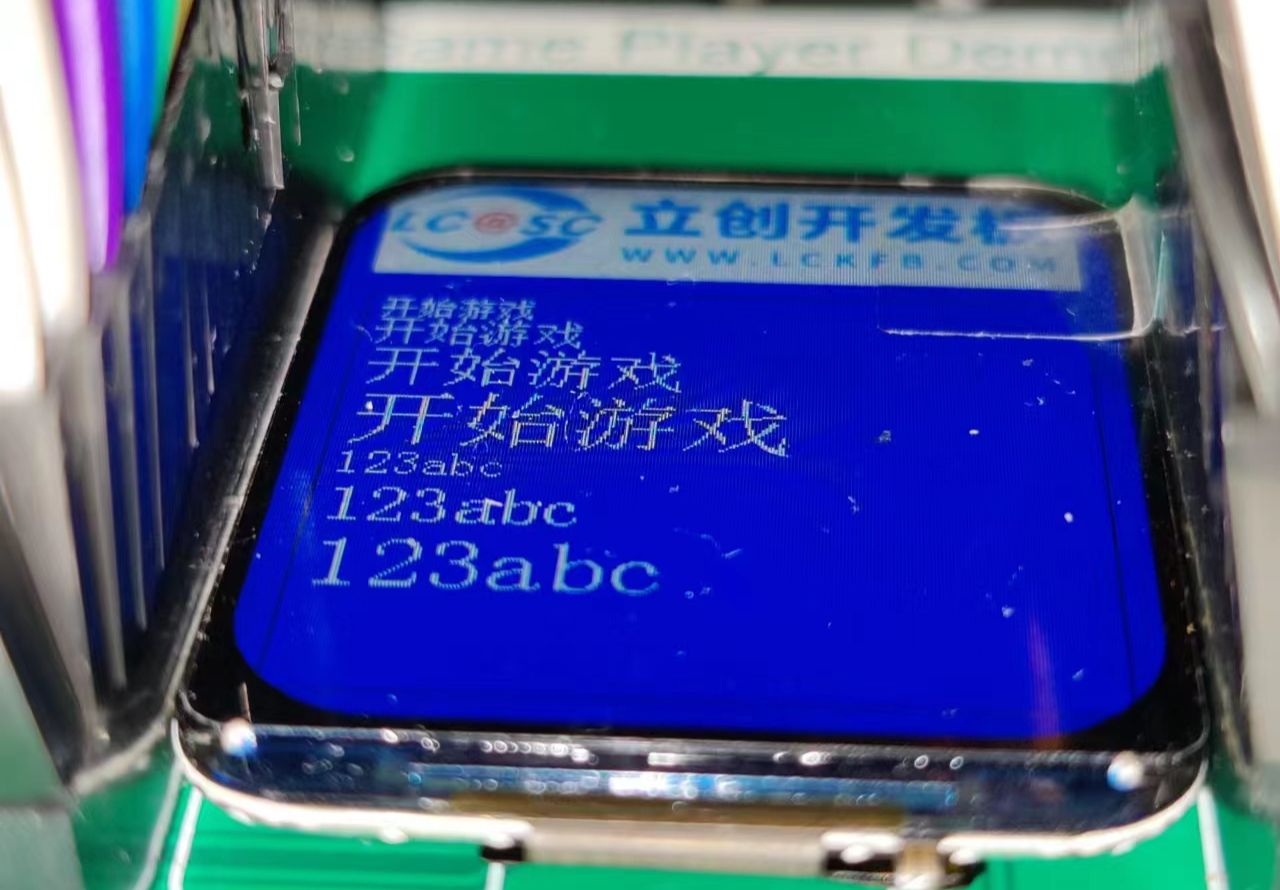

Actual picture

ps: The pin header is soldered backwards, so only the cable can be used.

Design Files
