USB extender-V1

Overview

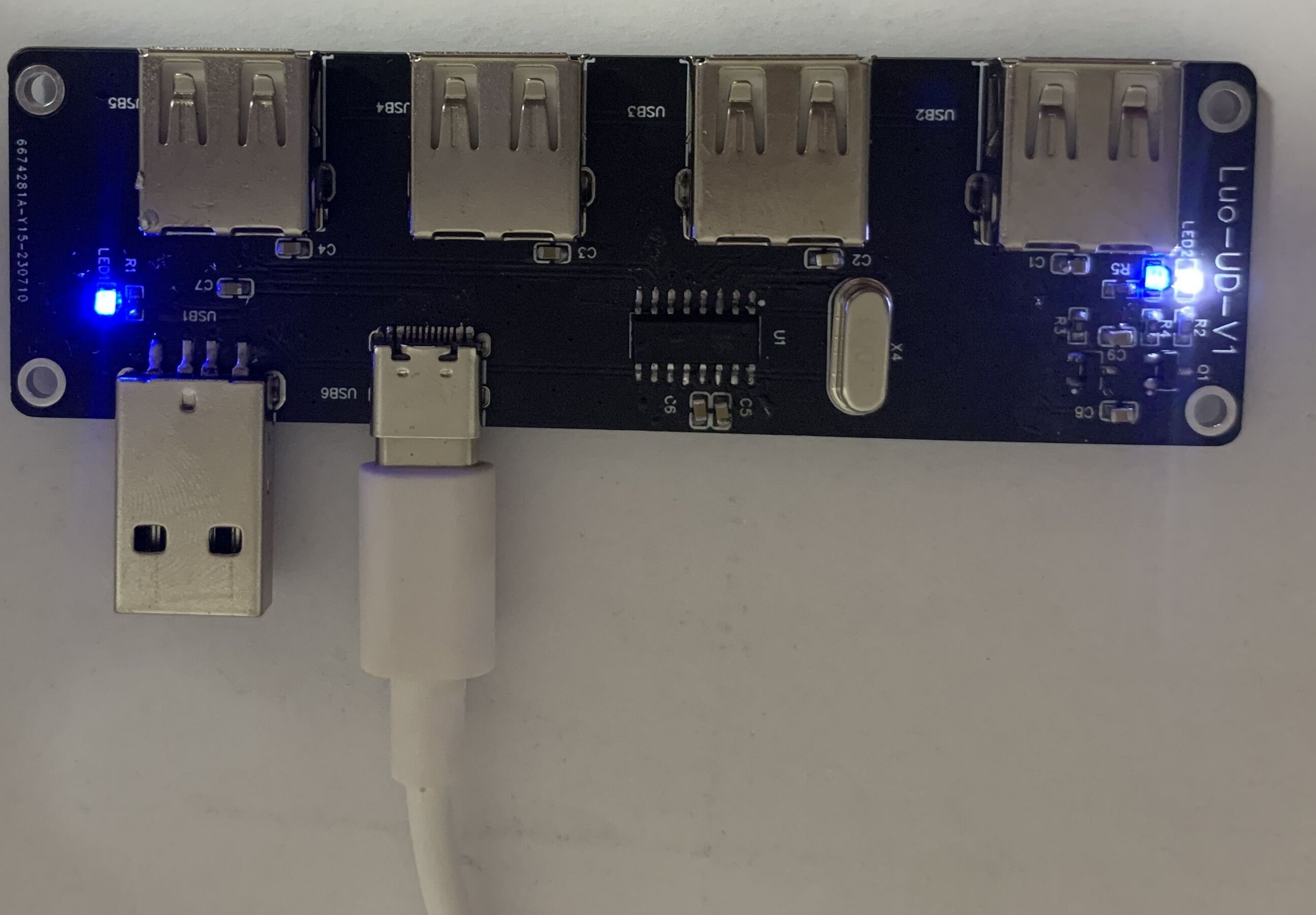

This project design is based on the design of a USB extender. It has only a single USB female socket and an indicator light flashing to check whether the product can operate normally. It does not have other functions such as a card reader or a network cable socket. Changes and upgrades will be made in the future!
