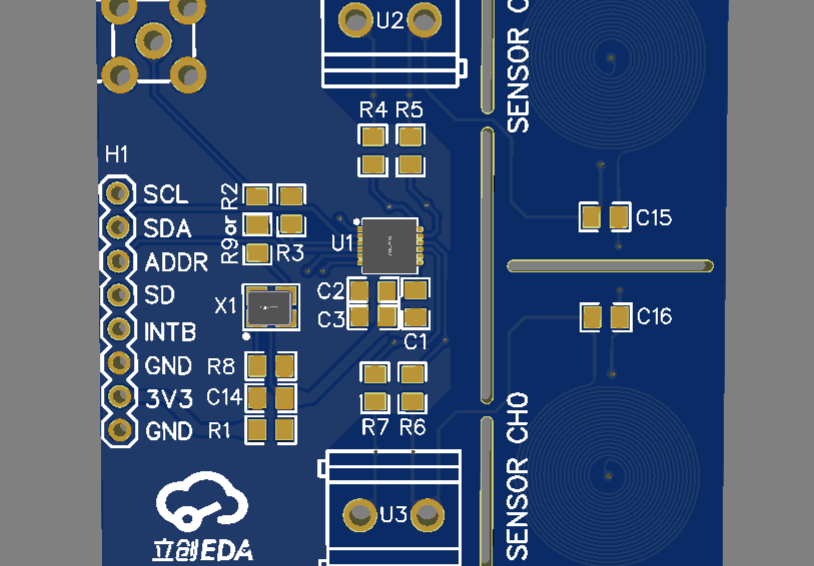

LDC1612 verification board

Overview

This project is used to verify the solution verification board design of the special sensor LDC1612DNTT (mall number C202191) of Lichuang Mall.

The LDC1612 is a 2-channel and 28-bit inductive-to-digital converter (LDC) for inductive sensing solutions. The sensor frequency only needs to be in the range of 1kHz to 10MHz to start working. Due to the supported sensor frequency range of 1kHz to 10MHz, the use of PCB coils is also supported, further reducing the cost and size of the sensing solution.

LDC1612 communicates with the microcontroller through the I2C interface.
