Ultra-small ESP8266 module (discrete device with full functions)

Overview

No need to explain. . . When making a board directly, please
note that everything
that should be pulled up or pulled down has been pulled down. It can work directly after downloading. There is no need to add peripherals like other (e.g. esp12-f) modules to work.
When I used it in my project, I just removed all the buttons, LEDs, pins, etc.
It's been working for three days straight with no issues.
Please download the BOM in the attachment. Do not use the automatically generated one. Some packages have been changed! ! !

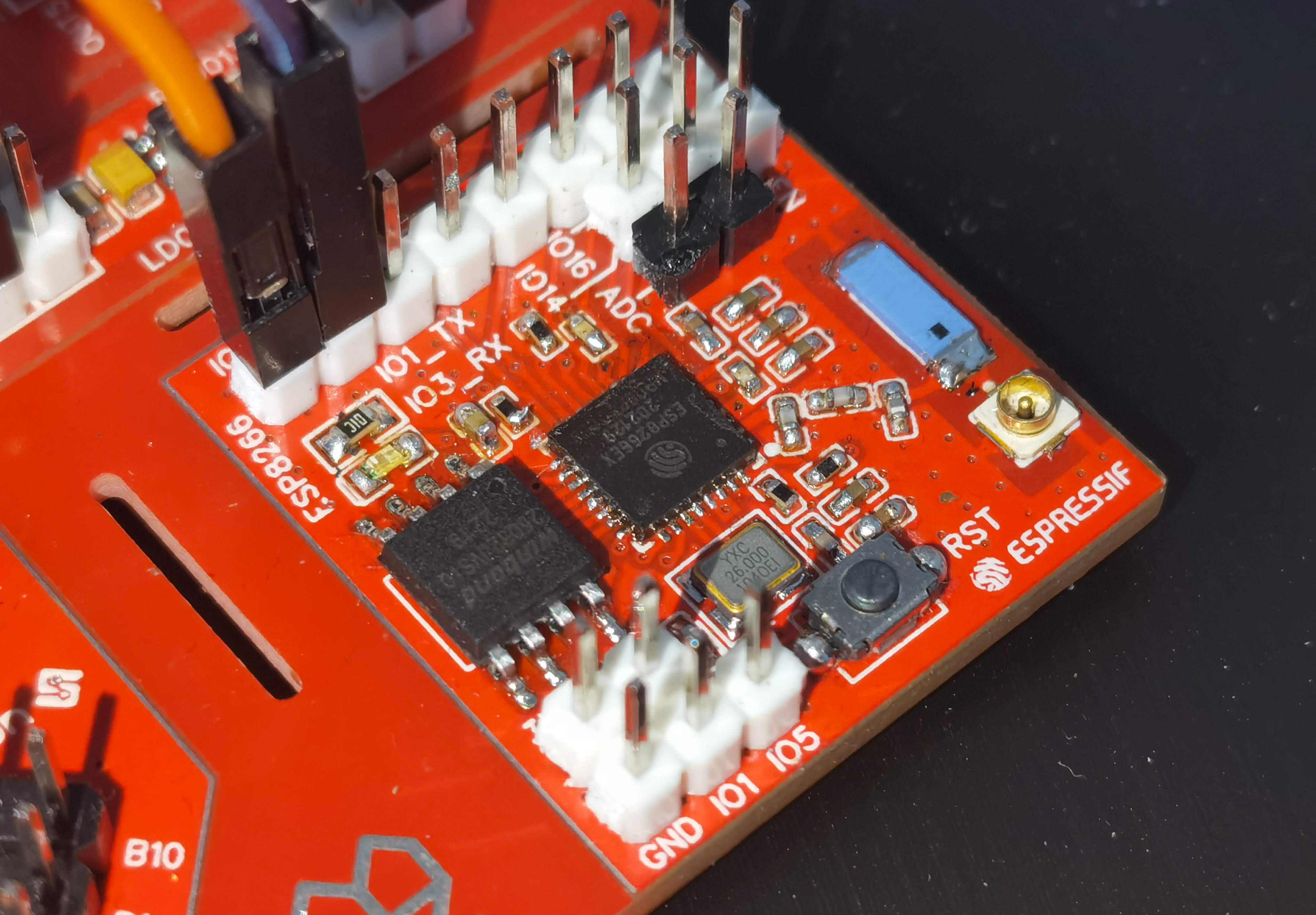

some pictures
