Development board based on 1.54 IPS LCD display and ESP8266

Overview

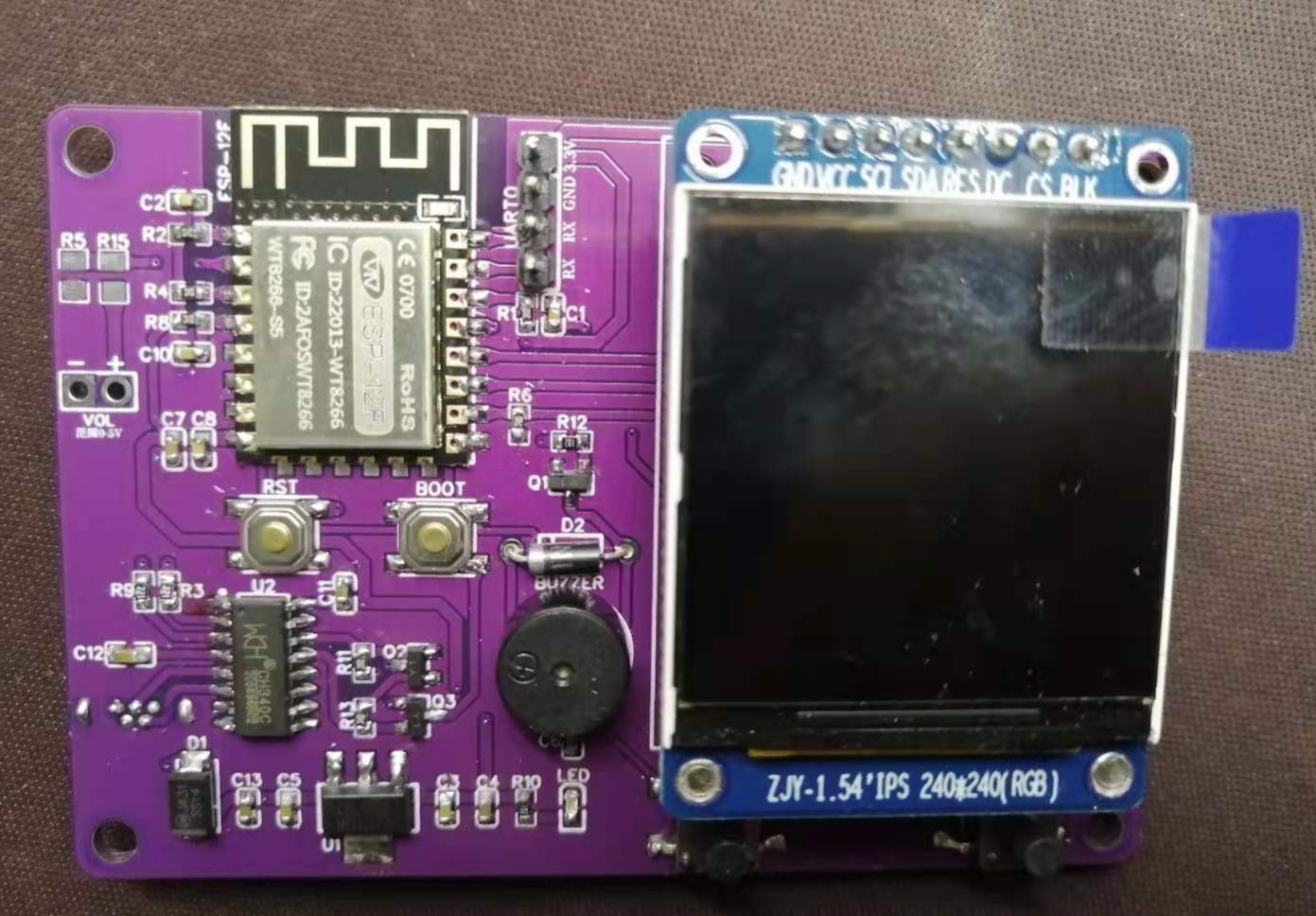

Mainly used to make development boards using
components:
1. The main control is ESP12-F module
2. Zhongjingyuan 1.54-inch IPS _LCD
3. Two buttons
4. A buzzer
5. Onboard CH340C serial port chip, which can automatically Download
6. Lead out the ADC to measure the external voltage

Design Files
