Type-C multi-function serial port board (open source_standard version)


* 1. Project function introduction
Type-C multi-function serial port board

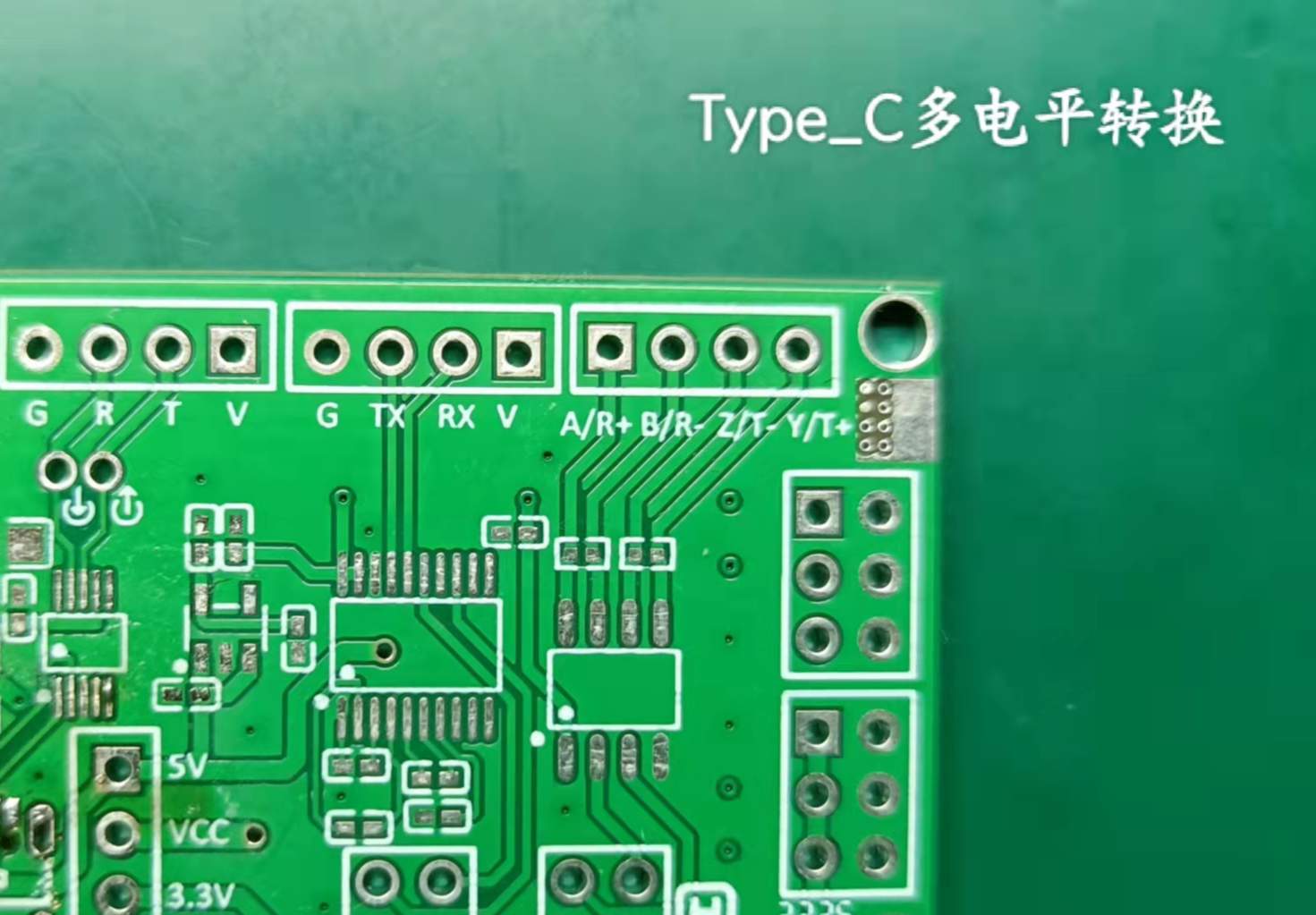

adopts Type-C input interface, and is designed to output commonly used popular serial port board (TTL/RS422/RS232). The serial port board has simple functions, convenient design and production, light and portable, and low cost. Suitable for program burning and serial communication;
in addition to communication download; it can be used as a voltage conversion module and Type-C to USB module.
Voltage: standard Type-C voltage, overload protection 10~15V. Level: default output TTL level, you can turn the dial switch to adjust the required level output;

front
and back



*2. Project attributes
Please leave a message for reprinting

*3. Open source agreement
GPL3.0 Open source agreement


*4. Hardware part

LC.EDA

Alitum Designer (19.0)
