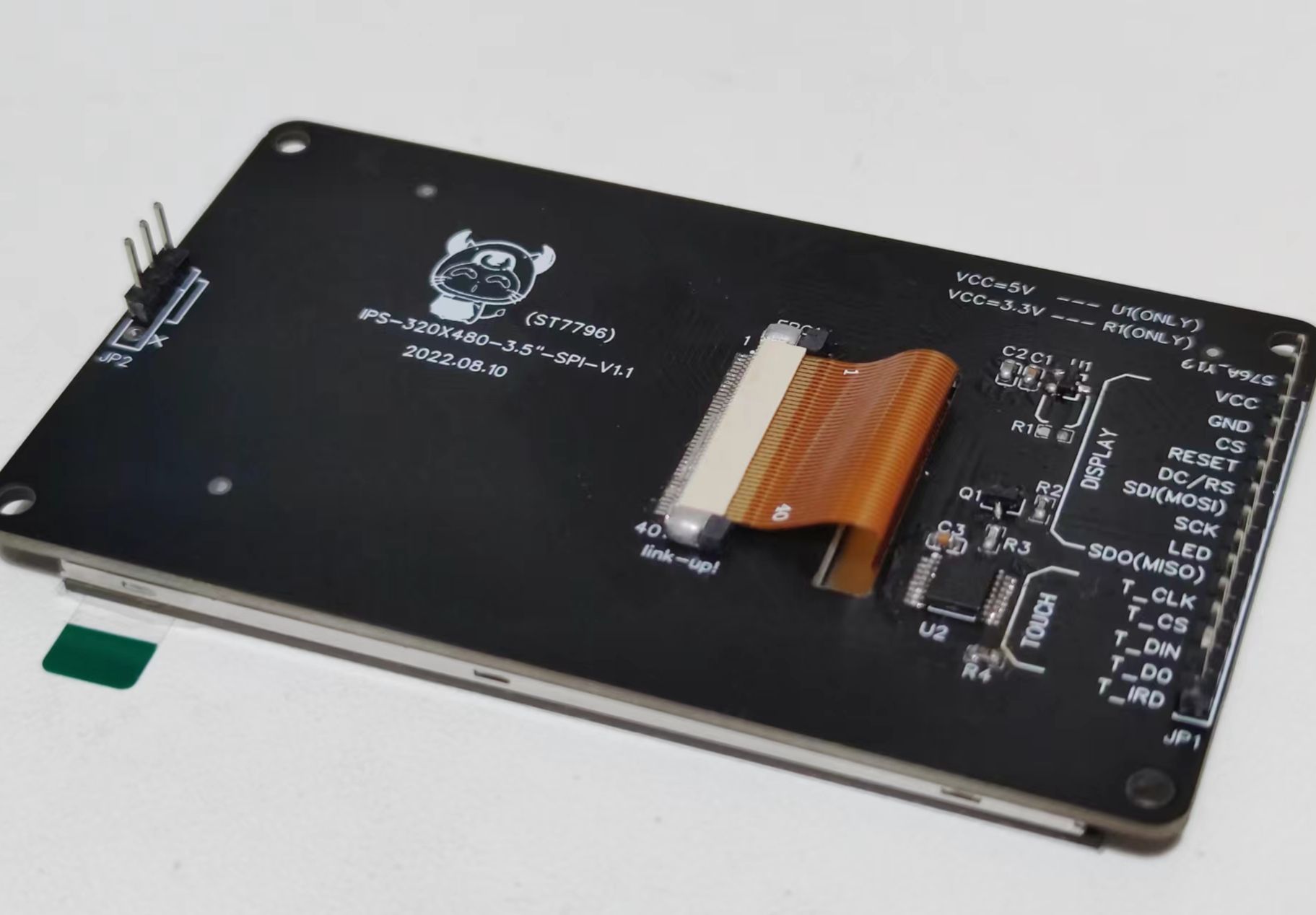

3.5-inch full-viewing angle resistive touch screen

Overview

Display effect:
The screen is a full-view screen, and the display effect is still very good. The actual viewing effect is better than the photo.

The attachment contains gerber and material BOM.
The screen purchase link is in the excel file of the list. It is recommended to buy the screen on the list directly (note to tell the customer service that it is a full-view screen), but other screens can also be used as long as the interface is consistent. If the interface is different, you need to change the schematic diagram and update the PCB.
