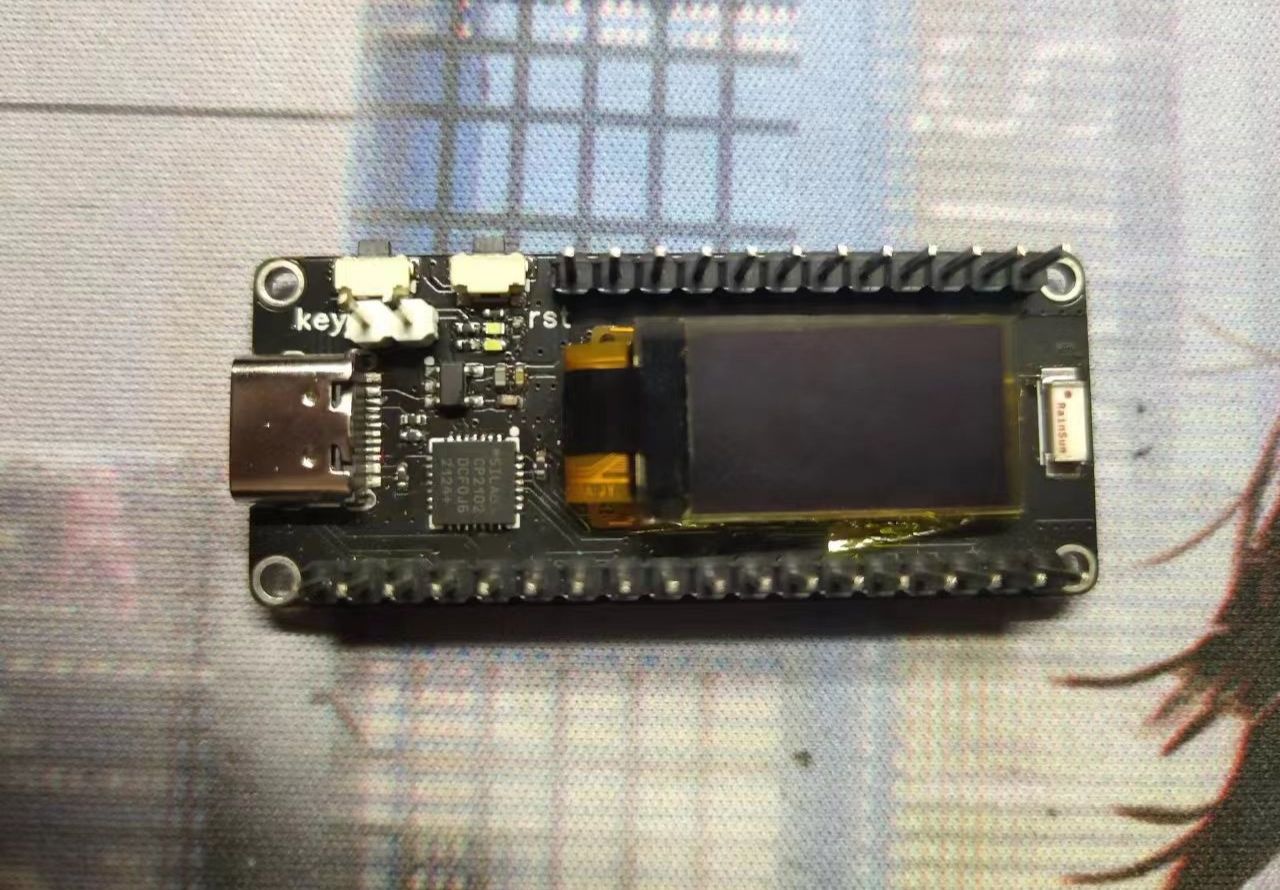

ESP32-PICO-D4 core board

Overview

Zhihui Jun's original project address GitHub - peng-zhihui/ESP32-PicoDK
All GPIO leads to
the onboard MPU6050, an OLED, a CAN-PHY chip, a USB to serial port, a user LED, and a user button.
The peripherals mentioned above The chips can be connected to or disconnected from the GPIO through jumpers on the back of the board, so it does not affect the use of the GPIO for other purposes.
Extremely mini size

Design Files
