esp8266 I2C screen breakout board

Overview

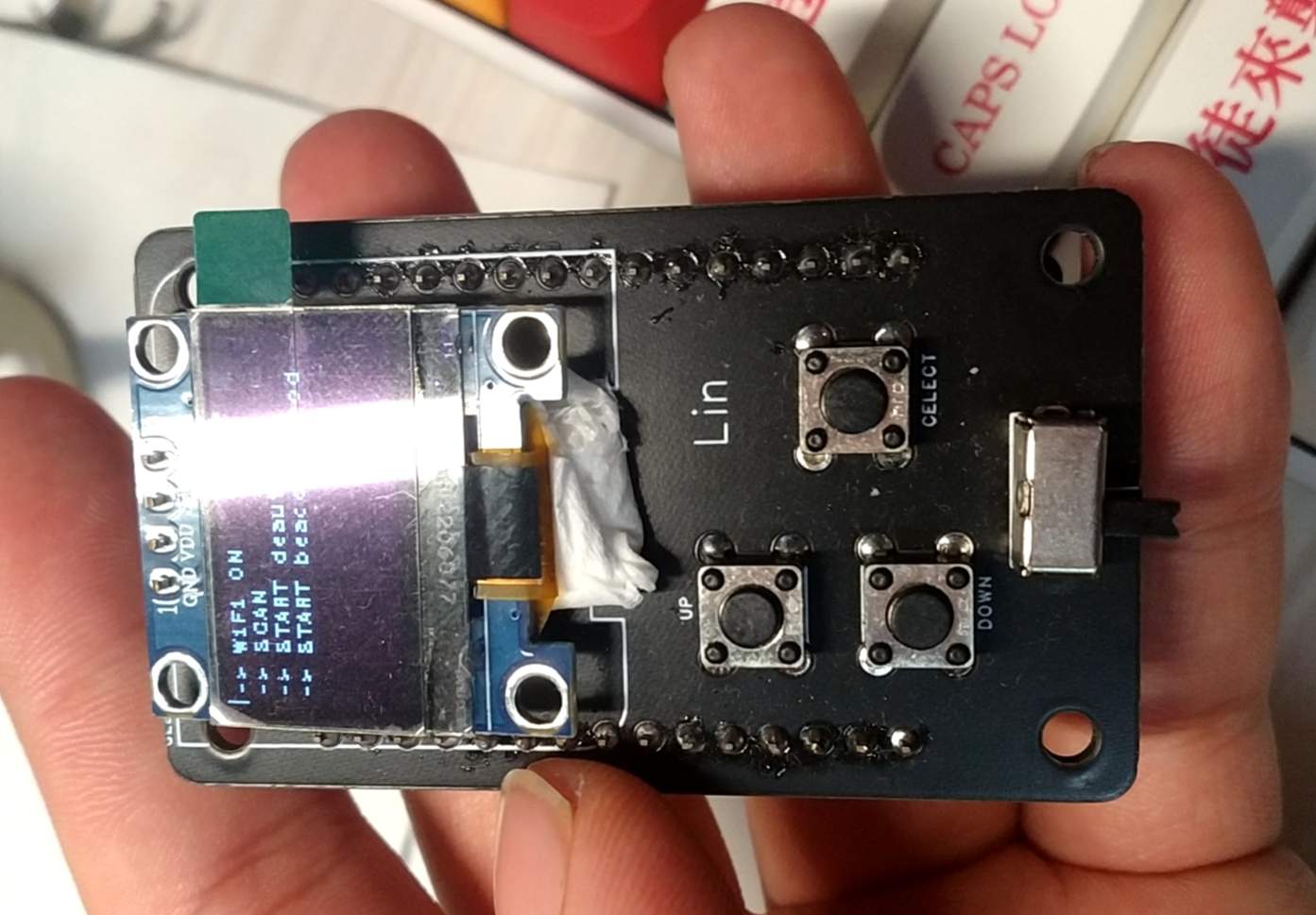

It's quite simple. It's equivalent to a wiring board. It is recommended to use the node module on the axis base so that you can make some new toys after you get tired of playing with it. Moreover, you can also add batteries and charging modules to the elevated place. If you want to charge the module directly, You can find it by searching for lithium battery 1a charging module. The shaft base and pin header are also very cheap.

It's probably just welding, very simple. The open source version is more advanced, and its width is exactly the same as that of the node module.

The screen information transmission lines of this version are separated by 0402 packaging, and they can be connected with a big piece of tin, so that the versatility is higher.
