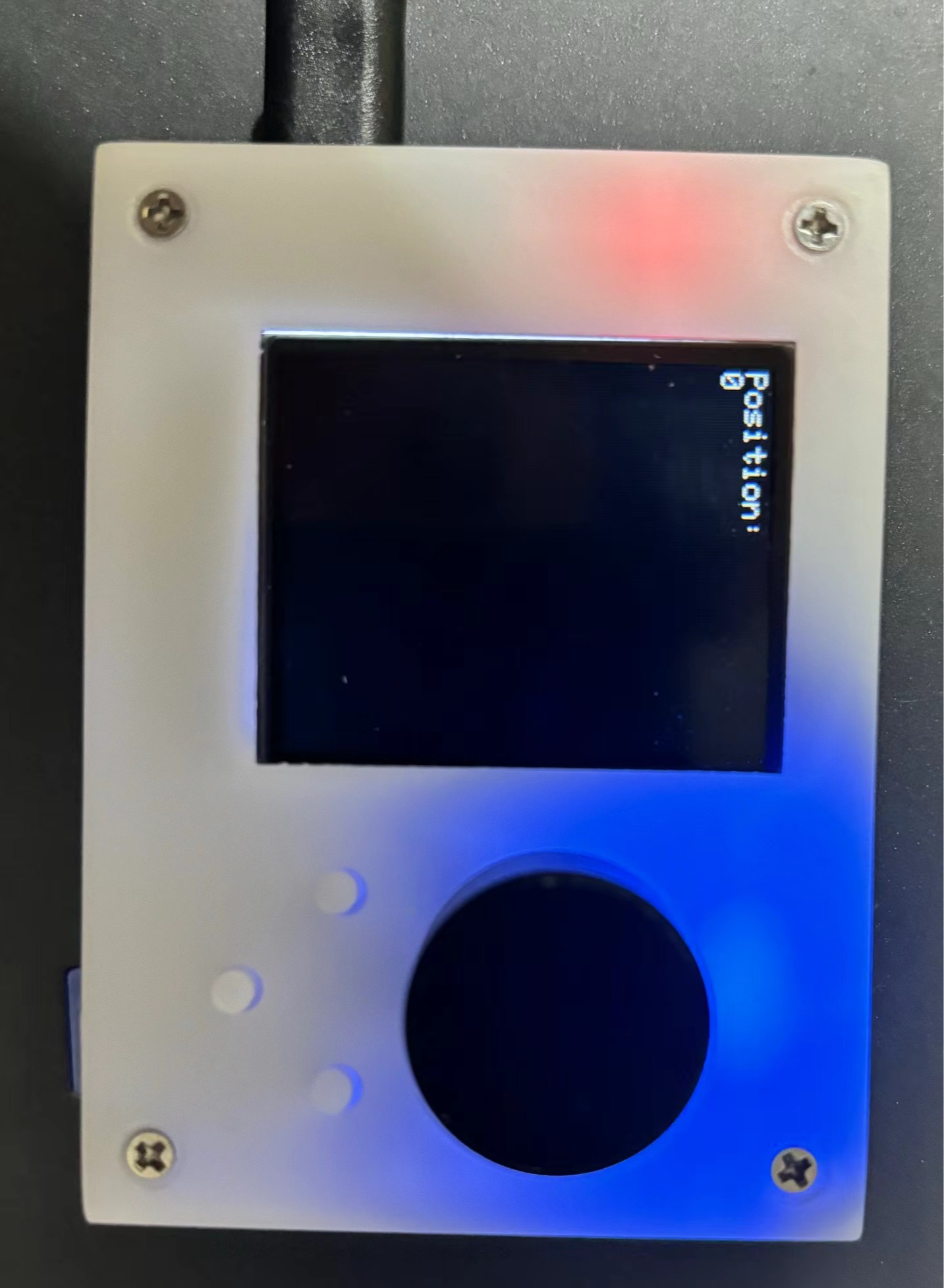

ESP32-based Home Assistant remote control

Overview

This is an MQTT remote control developed using ESP32. It connects to HA devices and can remotely control an air conditioner to adjust its temperature.

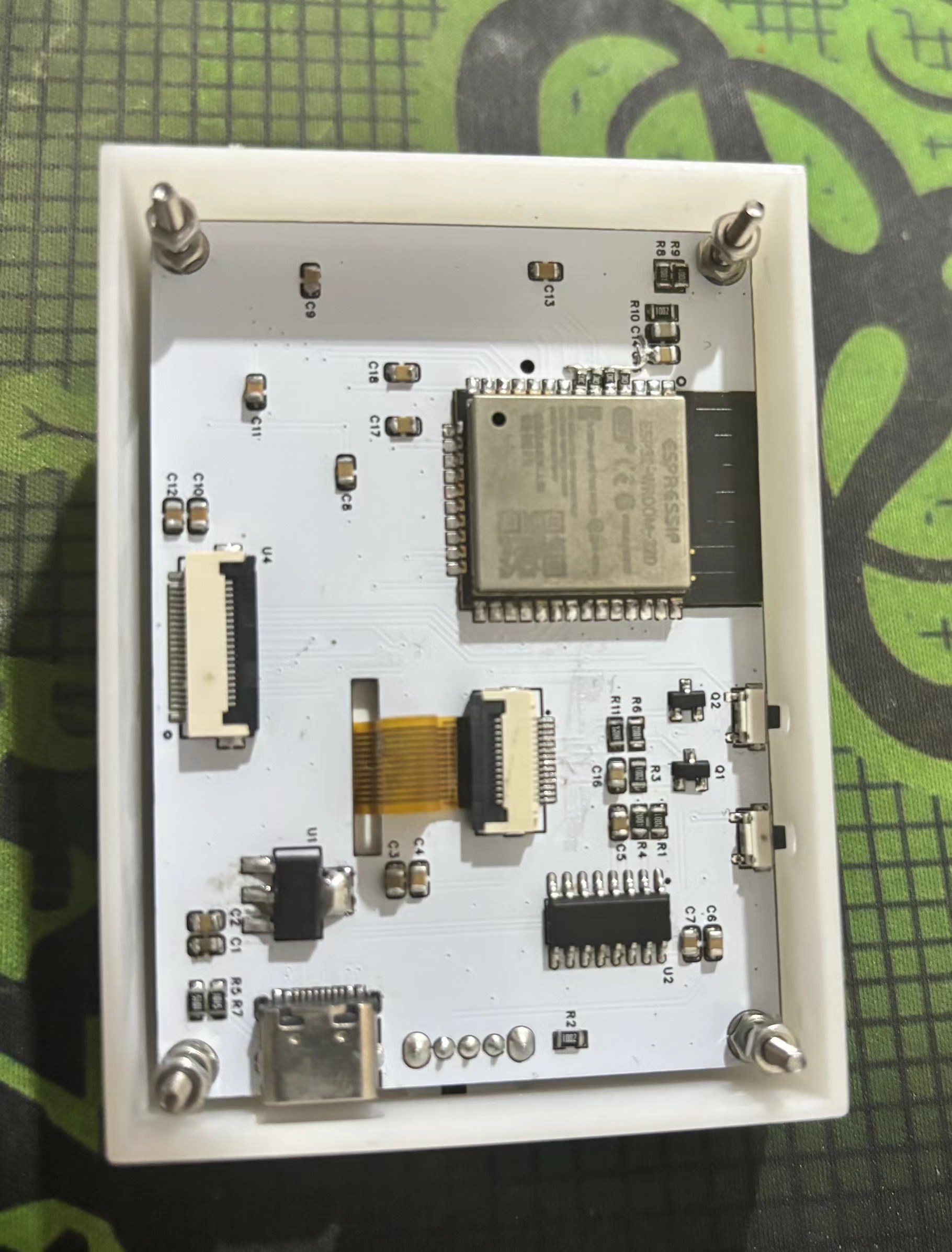

The hardware is complete; it's been printed out and soldered, and it works without any problems.
The screen is this one from Taobao: https://m.tb.cn/h.g9bOk7o8rdvLqm4?tk=IsTM3dCHiAV CZ3460 "1.8-inch TFT LCD screen, SPI serial port, 65K color TFT, 51 microcontroller driver, free shipping, STM32".
I'm still struggling with the code, trying to use LVGL for the UI, but I'm still researching it. I estimate the code will take a very long time to develop. I've also adapted the casing.

3D Printed Shell.rar

PDF_ESP32-based Home Assistant Remote Control.zip

Altium_ESP32-based Home Assistant Remote Control.zip

PADS_ESP32-based Home Assistant Remote Control.zip

BOM_ESP32-based Home Assistant Remote Control.xlsx
