CW32-based voltmeter and ammeter (LCSC Training Camp)

Overview

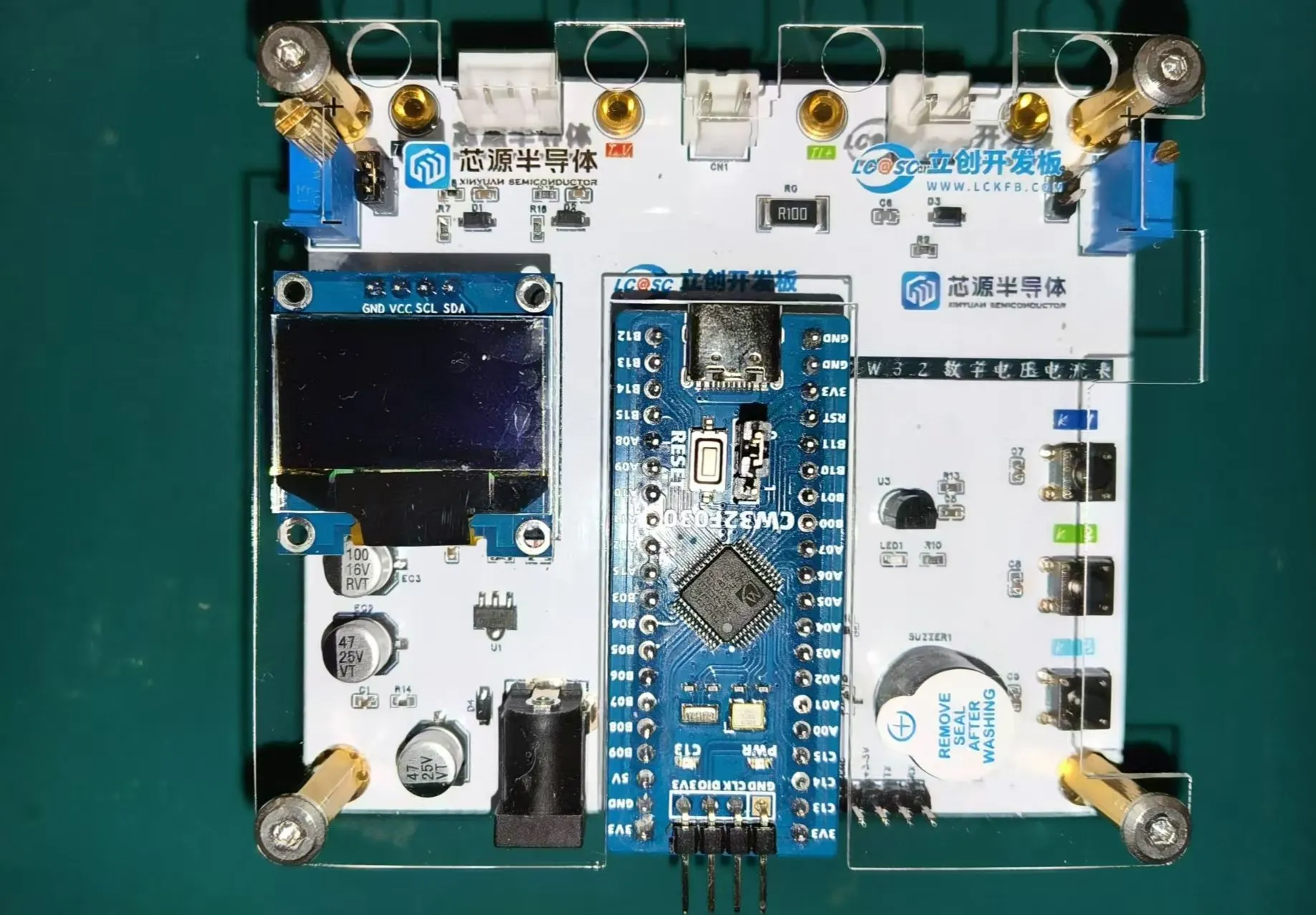

Based on the CW32 digital voltmeter and ammeter training camp project, and after replication, the functionality is complete. Currently, there are two versions of the program. Due to limitations in the tools available for measurement, the simpler version was chosen for testing. The test results were good; voltage measurements were relatively stable at

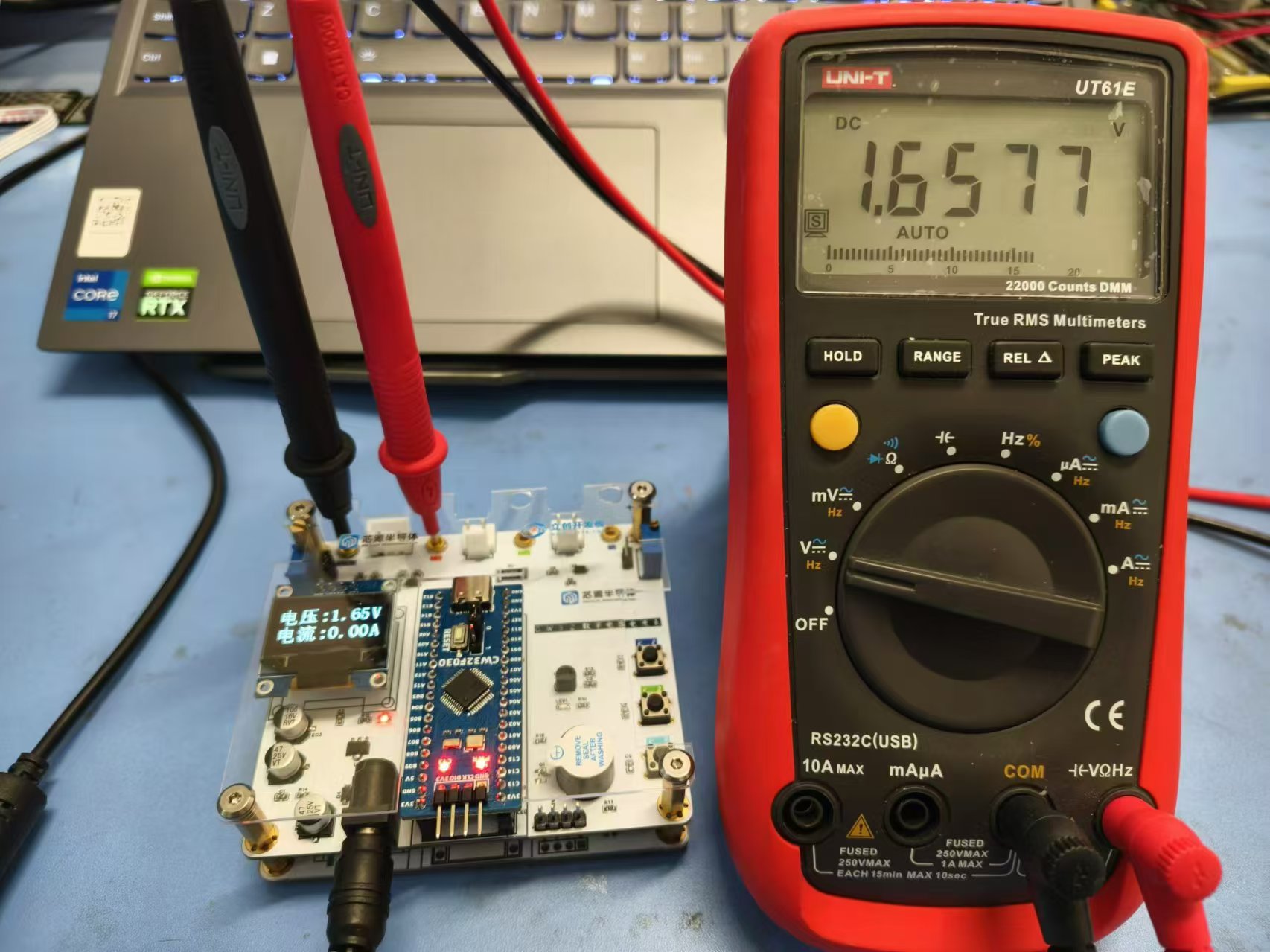

1.65V,

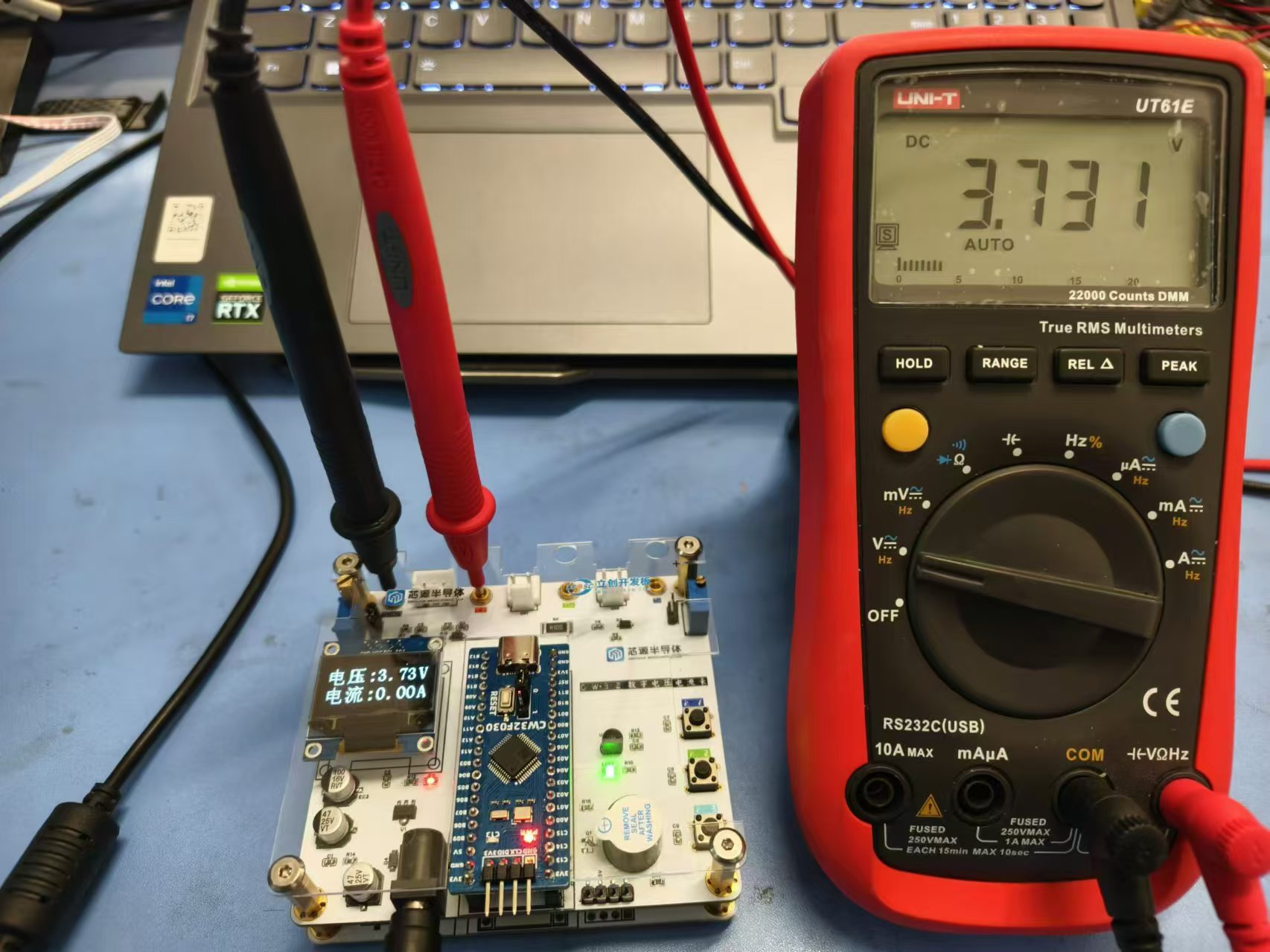

3.73V, and

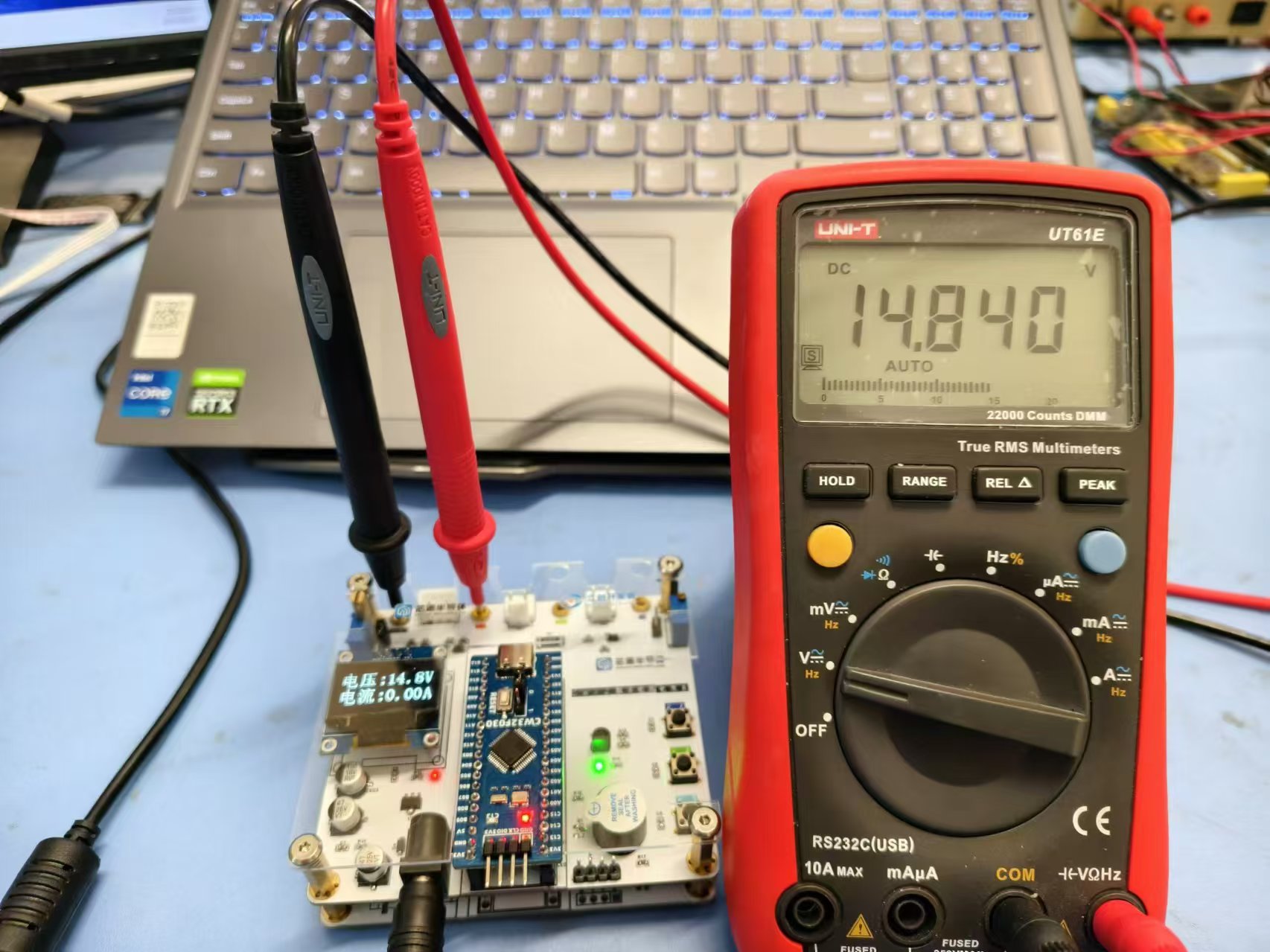

14.8V.

Current measurement was not demonstrated due to the lack of a constant current source. Due to time constraints, this is the current state of the project. Several firmware updates will be released later to add new features. It has high scalability and can realize many useful or interesting functions.
(Original document: CW32 Digital Voltmeter and Ammeter Training Camp Project Tutorial Document | LCSC Development Board Technical Document Center (lckfb.com))
