CW32 Voltage, Current, and Resistance Meter

Overview

1. Project Function Introduction:
This is a voltage and current meter designed based on the LCSC CW32F030C8T6 development board. It can collect and display voltage, current, and resistance data, and a multimeter connection is provided to test the accuracy of the collected data.
2. Problems Encountered:
Because some circuits were self-designed, problems arose during testing, such as: 1. The 12V USB signal could not be triggered (optimized). 2. The lack of grounding in the resistance measurement circuit caused 3.7V interference with other ADC measurements (optimized). 3. There were issues with the LED and buzzer packaging (resolved).

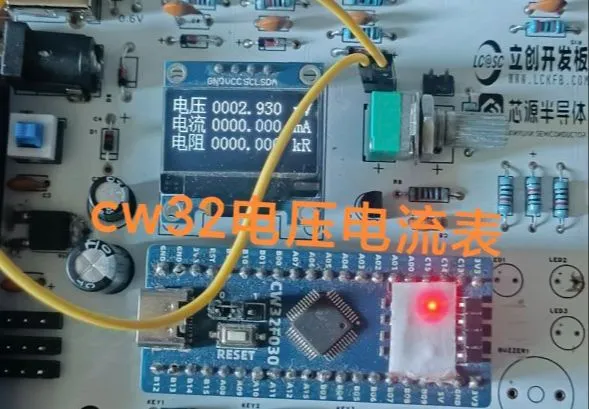

3. Physical Product Images
alt attribute text

4. LCSC Development Board Open Source
: LCSC CW32 Digital Voltage and Current Meter Expansion Board
5. Keil Project
(attached). The code is somewhat rough, and some functions are not yet implemented, such as calibration.
