Jiujiupai 2k0300 screen adapter board Loongson development board

Overview

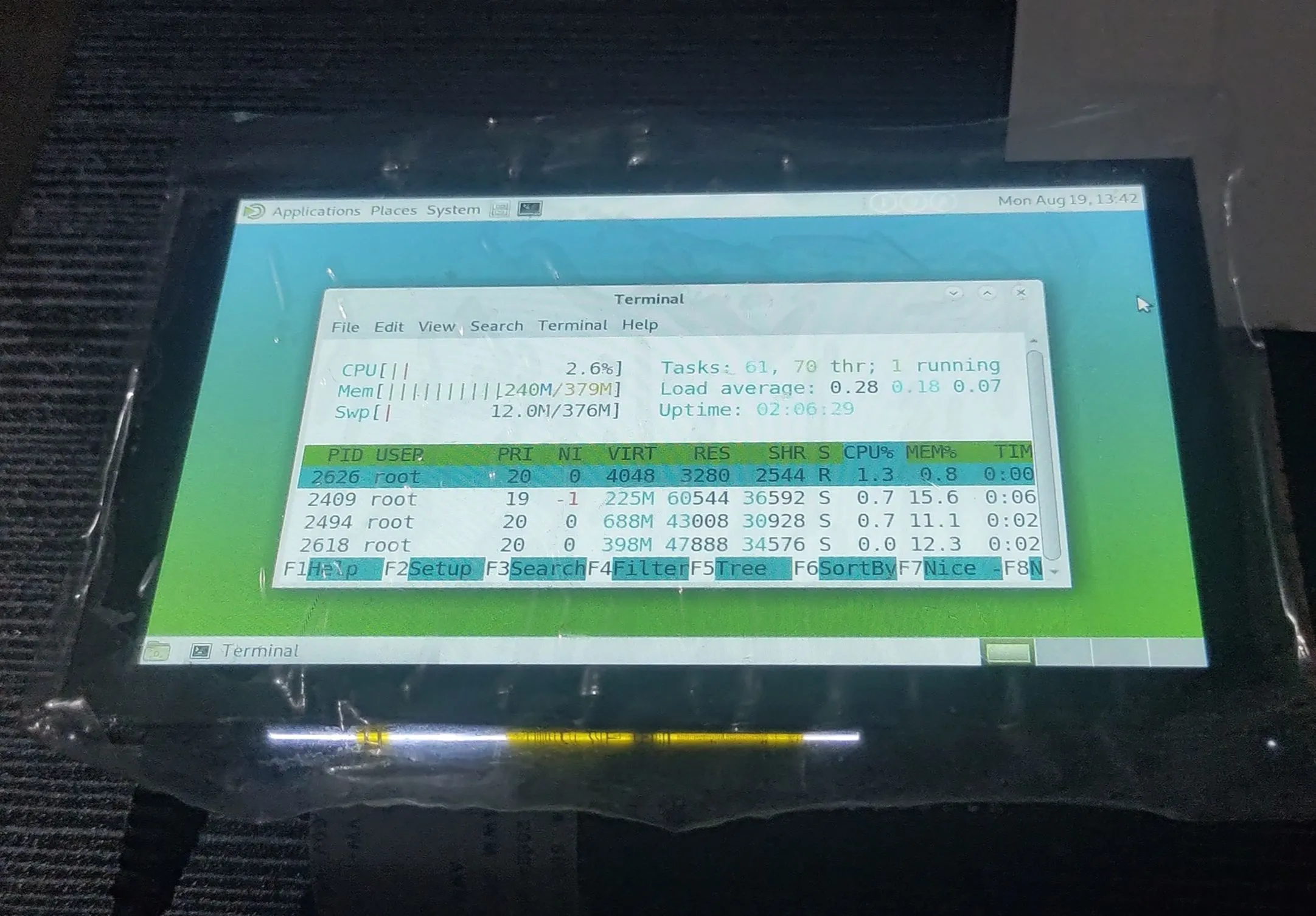

The screen used is a 5-inch RGB 800*480 capacitive touchscreen from Yaoyuanhong's Taobao store. (Link: Click to jump).
Before use, you need to modify the screen configuration and touchscreen configuration in the kernel file.
Zhongke Cloud Forum: https://bbs.ctcisz.com/
Note:
The 40P FPC connector is for connecting to
the 6P connector below; the FPC connector is for connecting to
the 54P connector above; the FPC connector is for connecting to the 54P connector below; the ribbon cable must be in the same direction.

PDF_Jiujiupai 2k0300 Screen Adapter Board Loongson Development Board.zip

Altium_久久派2k0300 screen adapter board Loongson development board.zip

PADS_久久派2k0300 screen adapter board Loongson development board.zip

BOM_久久派2k0300 screen adapter board Loongson development board.xlsx

93023

WS2812-5050 Aluminum Substrate 8x8 Lamp Board

WS2812-5050 aluminum substrate 8x8 LED board. Aluminum substrates can also be custom-made for free. Give it a try! Better heat dissipation, suitable for LED boards, power supplies, and other

circuits with high heat generation. Video

introduction

:
https://www.bilibili.com/video/BV15iWAeJEc3

PDF_WS2812-5050 Aluminum Substrate 8x8 Lamp Board.zip

Altium_WS2812-5050 Aluminum Substrate 8x8 Lamp Board.zip

PADS_WS2812-5050 Aluminum Substrate 8x8 Lamp Board.zip

BOM_WS2812-5050 Aluminum Substrate 8X8 Lamp Board.xlsx

93024

The WS2812-Matrix-8x8 uses the ESP32C3Mini driver.

Another 64-bit simple WS2812 full-color dot matrix ESP32C3 SuperMini JLCPCB prototype 3D printed shell Arduino+VSCode+PlatformIO

64-bit Simple WS2812 Full-Color Dot Matrix ESP32C3 SuperMini JLCPCB Prototyping 3D Printed Shell Arduino + VSCode + PlatformIO
Hardware: ESP32C3 SuperMini Development Board + WS2812
Software Platform: VSCode + PlatformIO + Arduino
Open Source Address: https://github.com/zhuhai-esp/ESP32-C3-WS2812-8X8-4Keys

Rear

Power-On Effect

3D Shell

Shell Printed Object

Assembly Effect

Other: https://www.bilibili.com/video/BV1eeYKeSEiK

PDF_WS2812-Matrix-8x8 using ESP32C3Mini driver.zip

Altium_WS2812-Matrix-8x8 uses ESP32C3Mini driver.zip

PADS_WS2812-Matrix-8x8 uses ESP32C3Mini driver.zip

BOM_WS2812-Matrix-8x8 uses ESP32C3Mini driver.xlsx

93025

MSPM0G3507 core board

The MSPM0G3507 core board is pin-compatible with LCSC's Dimensity Components, has a smaller size, and also features an SPI interface for connecting to an LCD screen. This core board was created for the 2024 National Electronic Design Contest; after the contest, we open-sourced this core board and its baseboard.

The schematic and PCB design describe
the use of a CH340 for the serial port. The serial port pins are not exposed; connection is only possible via USB.

An 1117 power supply is used primarily for its affordability and ease of soldering.

The SPI interface is brought out for connecting to the LCD screen. Two attached images are

shown. A quick note: during the competition, one of the judges immediately asked me if it made sense for us to buy a ready-made board, and whether I thought this was a good practice for our competition. I almost died laughing. I explained that this was our lab's board, with my LCSC logo on it; it was a question-and-answer format. He asked me about the crystal oscillator frequency, and after I answered, he said to the person next to him, "This is the baseboard you designed yourself." I asked him if he had anything else to say, and he replied, "Don't say anything, I already know." I almost died laughing.

PDF_MSPM0G3507 core board.zip

Altium_MSPM0G3507 core board.zip

PADS_MSPM0G3507 core board.zip

BOM_MSPM0G3507 core board.xlsx

93026
