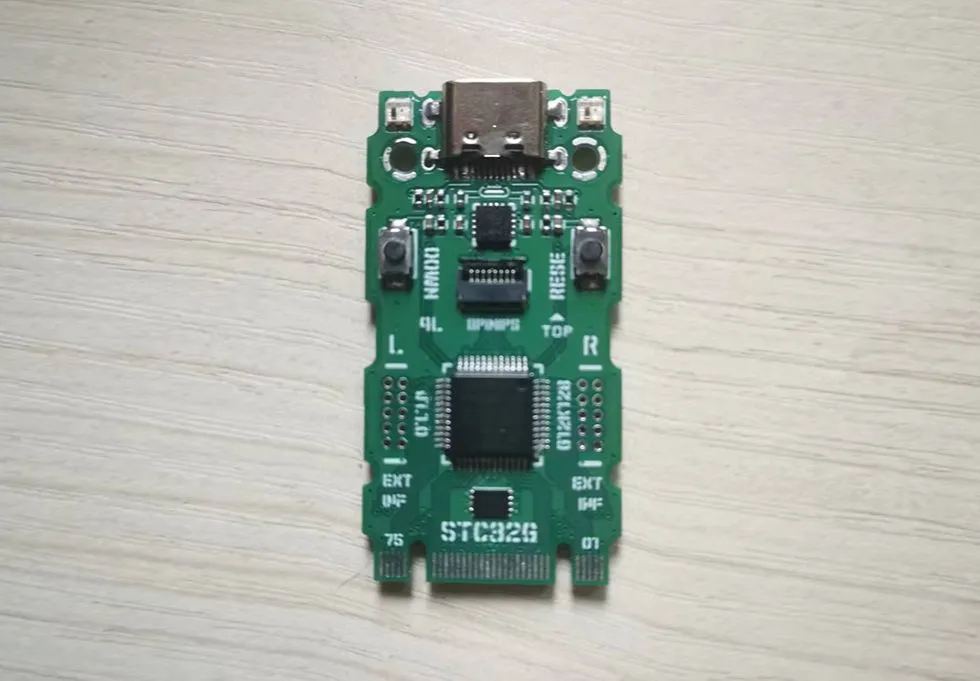

M2CB-STC32G

This core
version is based on the STC32G design and is inspired by the official Dragon Slayer development board.

Based on: STC32G12K128, 32-bit 8051 core (1T), approximately 70 times faster than traditional 8051.
Supports: UART, USART, ADC, advanced PWM, SPI, I2C, I2S, USB, CAN, LIN, RTC, DMA, etc.
IC: Onboard STC32GMCU, CH343P, M34E04
Interfaces: Onboard TYPEC, expansion header, 8-pin TFT, IPS screen interface, DIY M&M-Key M.2 interface
Supported programming platforms: ARM, Keil, etc.
All I/O ports have
two WS2812 LEDs. Reserved
8-pin TFT, IPS, SPI screen interfaces (note I/O conflicts).

Update Log

July 26, 2024 V1.1.0 Project Progress


Project Initiation
Feasibility Assessment
Solution Verification
Layout
Material Selection
Board Verification
Software Development
Project Completion
Specifications



Specifications MCU STC32G12K128-35I-LQFP48 High-speed 32-bit 8051 core (1T) Operating voltage: 2V~5.5V (Type-C, 1.27 expansion header, M.2 interface power supply) Operating temperature: -20℃~65℃ Flash memory: 128K bytes FLASH program memory (ROM) SRAM: 4K bytes internal SRAM (edata), 8K bytes internal extended RAM (internal xdata) Clock source : Internally integrated 4 clock sources Interrupts: INT0-4, Timer 0-4, USART1~4, ADC, DAC, LVD low voltage detection, SPI, I2C, comparator, PWMA, PWMB, USB, CAN, CAN2, LIN, LCMIF color screen interface interrupt, RTC real-time clock, all I/O interrupts (8 groups), DMA receive and transmit interrupts for serial port 1, serial port 2, serial port 3, serial port 4, I2C DMA receive and transmit interrupts, SPI The system supports DMA interrupts for the ADC, LCD driver, and memory-to-memory DMA. All GPIOs support quasi-bidirectional ports, push-pull output, open-drain, and high-impedance input modes. System block diagram: Please fill in the project design summary (within 300 characters). Functional block diagram, power supply diagram , overall design scheme block diagram , physical display. Important notes: Due to time constraints, the software is not yet fully verified; proceed with caution when designing the board!!!
