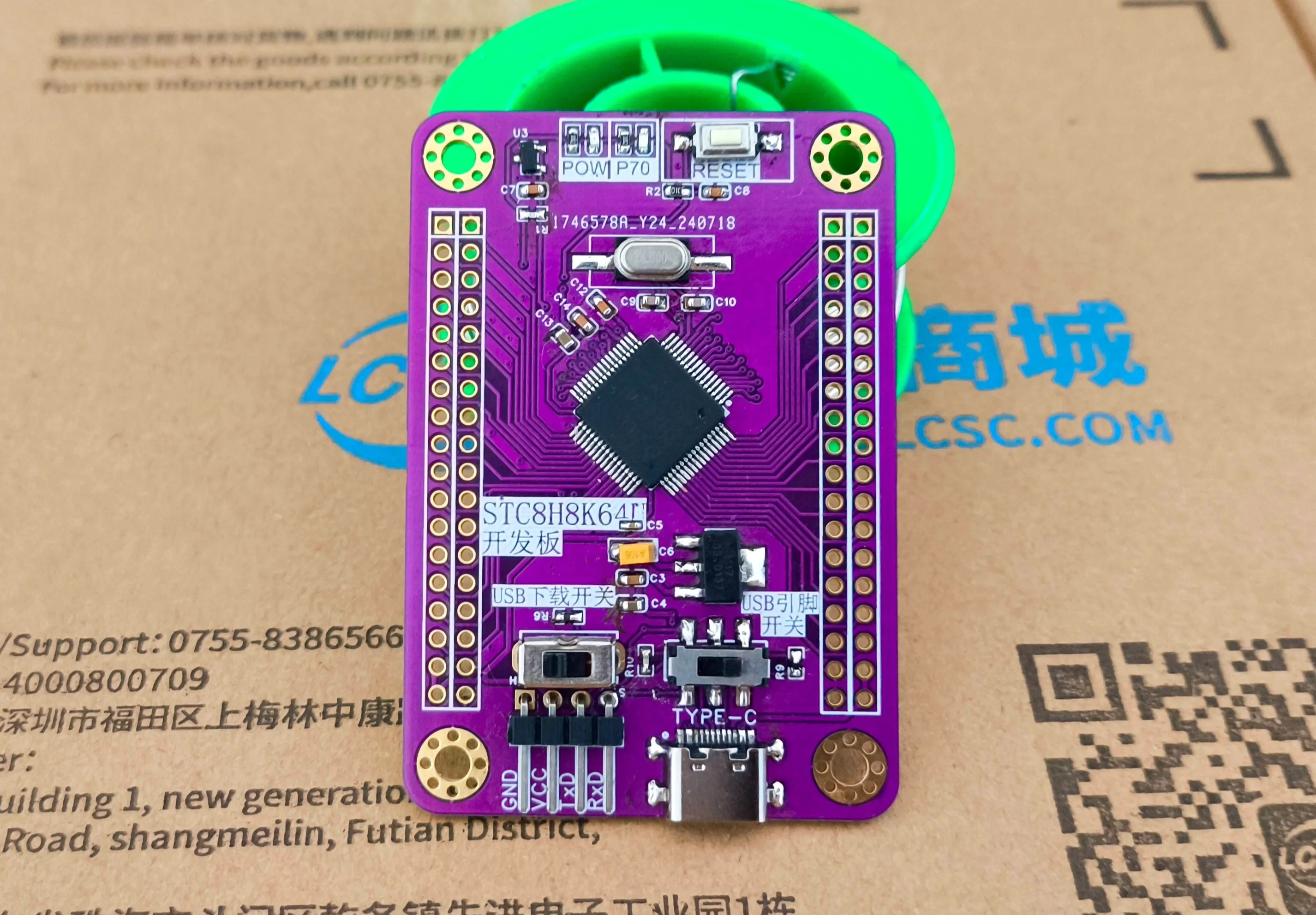

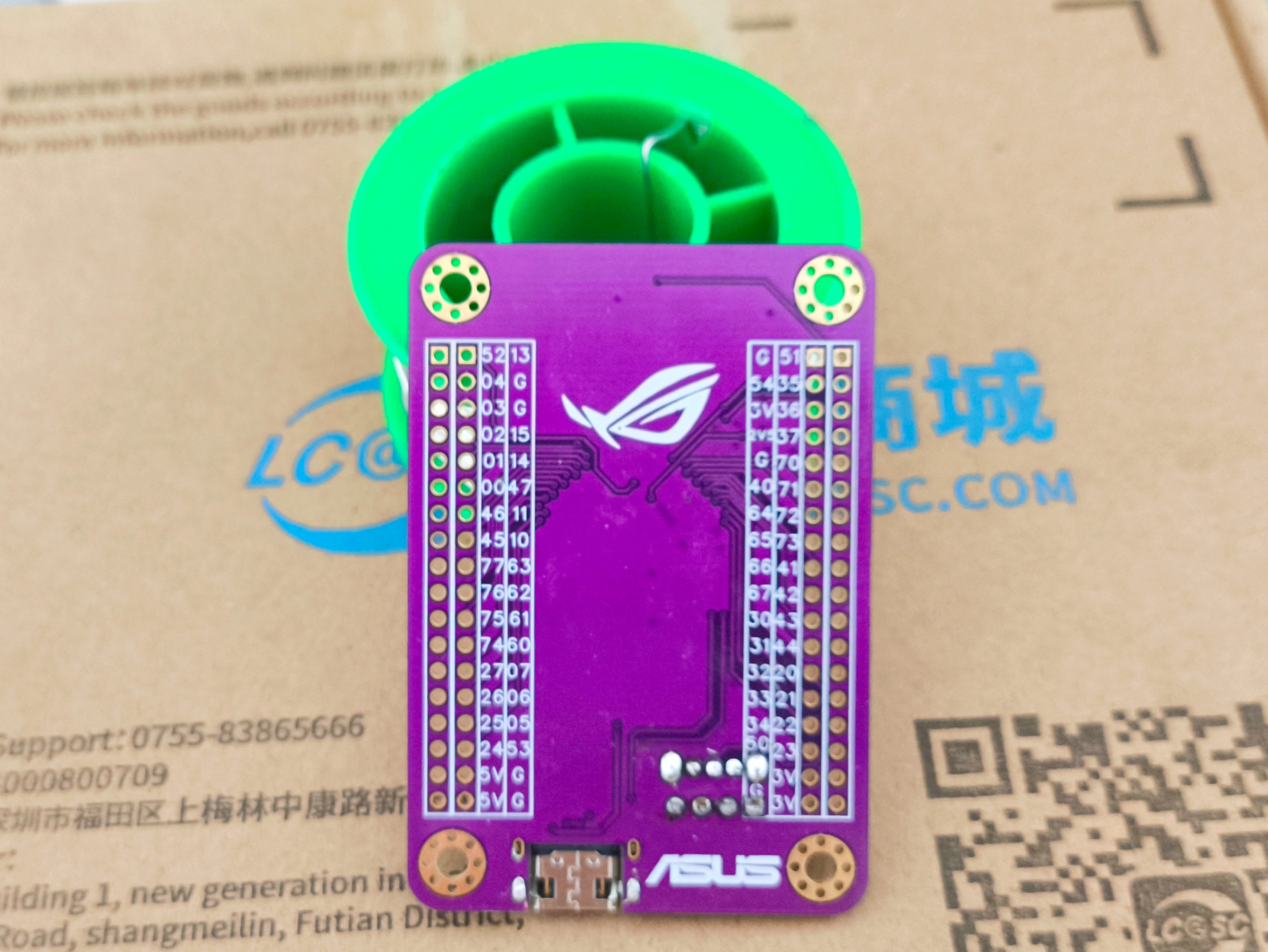

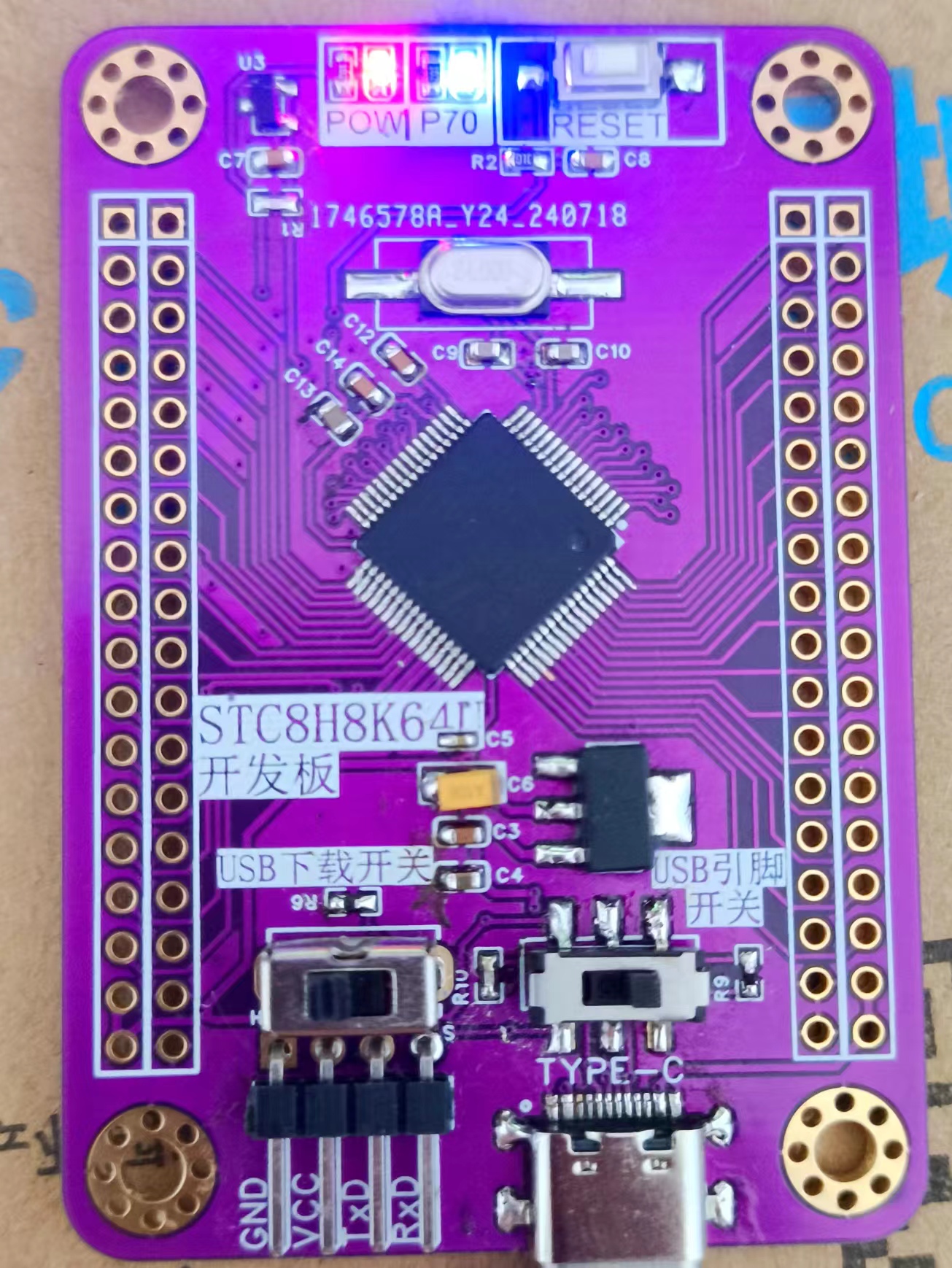

STC8H8K64U_ROG Development Board

main.c

STC8A8K64D4.H

progect.hex

bb383664a23bbc12da2b5cc1024076d8.mp4

PDF_STC8H8K64U_ROG Development Board.zip

Altium_STC8H8K64U_ROG development board.zip

PADS_STC8H8K64U_ROG development board.zip

BOM_STC8H8K64U_ROG Development Board.xlsx

93561

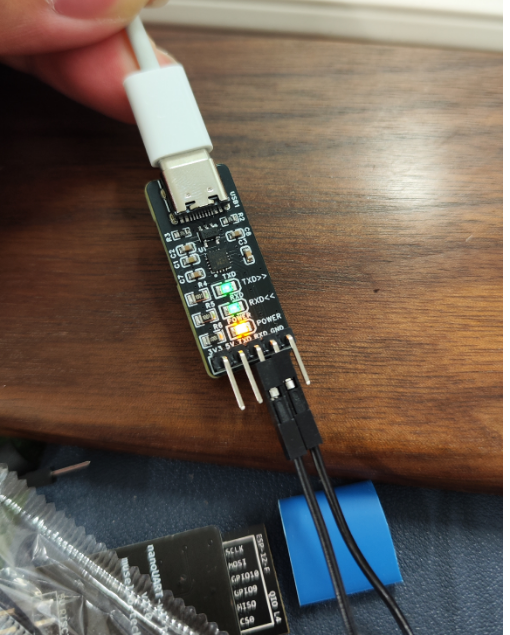

Mini CH343P Serial to USB Module

This module was designed to solve the problem of conventional USB-to-serial modules being unable to connect to Type-C ports.

USB-to-serial modules purchased online typically only connect to a computer via USB, often requiring a USB extension cable. To avoid this, a serial module with a direct Type-C cable connection was designed. This allows for most connection functions during debugging with just one cable (primarily because USB extension cables are expensive and difficult to use)

. The module uses a CH343P chip to convert the USB port to **3.3V TTL level** (if 5V TTL is required, please modify the circuit accordingly). The board provides both 5V and 3.3V power supplies. The 3.3V power is provided by the RT9013, and the **maximum output is recommended not to exceed 400mA** (the RT9013 is rated at 500mA, but considering heat generation, such a high current is not recommended). **Do not use in high-power applications such as motors.**

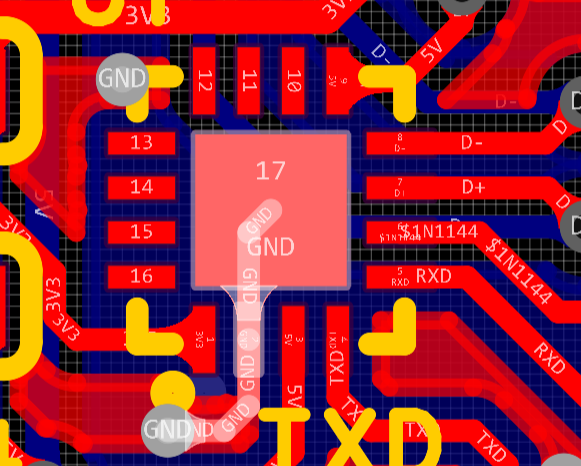

The CH343P uses a QFN16 package, and all capacitors on the board are 0603 packages. Neither of these packages is beginner-friendly; **it is recommended to use a heated platform and hot air gun for soldering**. The CH343P also has pads on the bottom, but the bottom GND pad is mainly for heat dissipation and soldering is not mandatory. If soldering skills are limited, **prioritize ensuring stable connections of the pins around the perimeter**.

![Screenshot 2024-07-25 092121.png] All project files come from JLCPCB's SMT basic and extended libraries, enabling SMT placement. **The BOM is for reference only**.

PDF_Mini CH343P Serial to USB Module.zip

Altium Mini CH343P Serial to USB Module.zip

PADS_Mini CH343P Serial to USB Module.zip

BOM_Mini CH343P Serial to USB Module.xlsx

93562

EastMartrix Pixel Clock Light Panel

This is a modification of the EastMartrix pixel clock light panel based on the open-source code from Bilibili's Da Congming.

The EastMartrix pixel clock light board, which originally required 4x64, can be implemented by changing it to 2x128.

PDF_EastMartrix Pixel Clock Light Board.zip

Altium_EastMartrix Pixel Clock Light Board.zip

PADS_EastMartrix Pixel Clock Light Board.zip

BOM_EastMartrix Pixel Clock Light Board.xlsx

93564

A linear CCD camera-guided intelligent vehicle controlled by an STC32G128K microcontroller.

This intelligent line-following vehicle, based on the STC32G128K microcontroller, uses a CCD camera as a data collection sensor and gyroscopes and other attitude sensors for auxiliary operation. It controls the vehicle's line-following by controlling the PWM output of a DC motor.

This project aims to design an intelligent car capable of autonomous line following. By integrating multiple advanced sensor technologies and precise control algorithms, it achieves efficient and stable line following functionality.

The intelligent line-following car uses an STC32G128K microcontroller as its core control unit, fully leveraging its powerful computing capabilities and rich interface resources. A CCD camera is used as a data collection sensor, capable of capturing ground trajectory information in real time and accurately. The CCD camera sensor features high resolution and fast response, providing the car with clear and reliable visual input.

To further improve the car's operational stability and attitude control accuracy, attitude sensors such as gyroscopes are also introduced for auxiliary operation. The gyroscope can sense changes in the car's tilt angle and angular velocity in real time, providing the microcontroller with precise attitude data, thereby enabling more accurate dynamic adjustments.

In terms of power drive, the motor's speed and torque are precisely adjusted by controlling the PWM output of the DC motor. The application of PWM technology makes motor control smoother and more efficient, allowing for flexible adjustments to the car's speed and steering according to different road conditions and line-following requirements.

After the car starts, the CCD camera sensor continuously scans the ground trajectory, transmitting the collected data to the microcontroller. The microcontroller quickly processes and analyzes this data, combining it with data from attitude sensors such as gyroscopes to calculate the optimal motor control strategy. Then, it outputs corresponding PWM signals to control the rotation of the DC motor, enabling the car to travel accurately and stably along a predetermined trajectory.

WeChat_20240723234020.mp4

WeChat_20240724141936.mp4

PDF_Intelligent Car for Linear CCD Camera Tracking Controlled by STC32G128K Microcontroller.zip

Altium-based intelligent car for linear CCD camera tracking controlled by STC32G128K microcontroller.zip

PADS_Linear CCD Camera Tracking Smart Car Based on STC32G128K Microcontroller Control.zip

BOM_Intelligent Linear CCD Camera Tracking Car Controlled by STC32G128K Microcontroller.xlsx

93565

STC32G

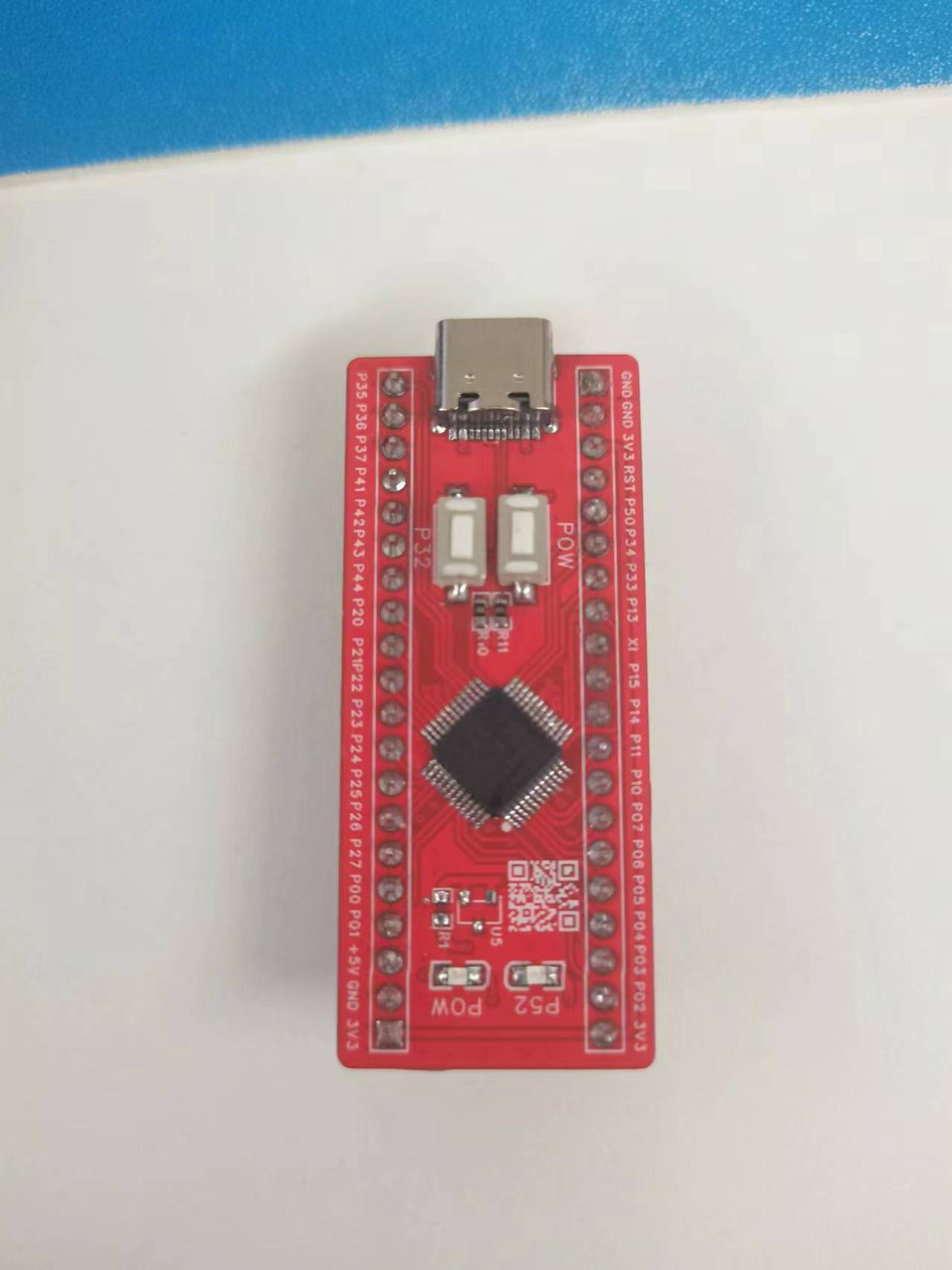

STC32G12K128-35I-LQFP48 core board

1. Powered via USB-C, with a 5.1k resistor pulling the CC pin down to GND.
2. Almost all I/O ports are brought out, using two sets of header pins, similar to the size of LCSC development boards.
3. A TL431 is connected to VRef to ensure ADC accuracy.
5. A 32.768kHz crystal oscillator is provided for testing RTC accuracy
. 6. One user button and one user indicator light.
7. Power supply can be selected from 3V or 5V.
8. No USB-to-serial adapter is needed; STC has a convenient USB-HID download

environment setup
. Simply download Keil C251 and STC-ISP. The corresponding pack for STC32G can be installed in STC-ISP, and you can start using it.


PDF_STC32G.zip

Altium_STC32G.zip

PADS_STC32G.zip

BOM_STC32G.xlsx

93567
