TJA1050T CAN transceiver board

Overview

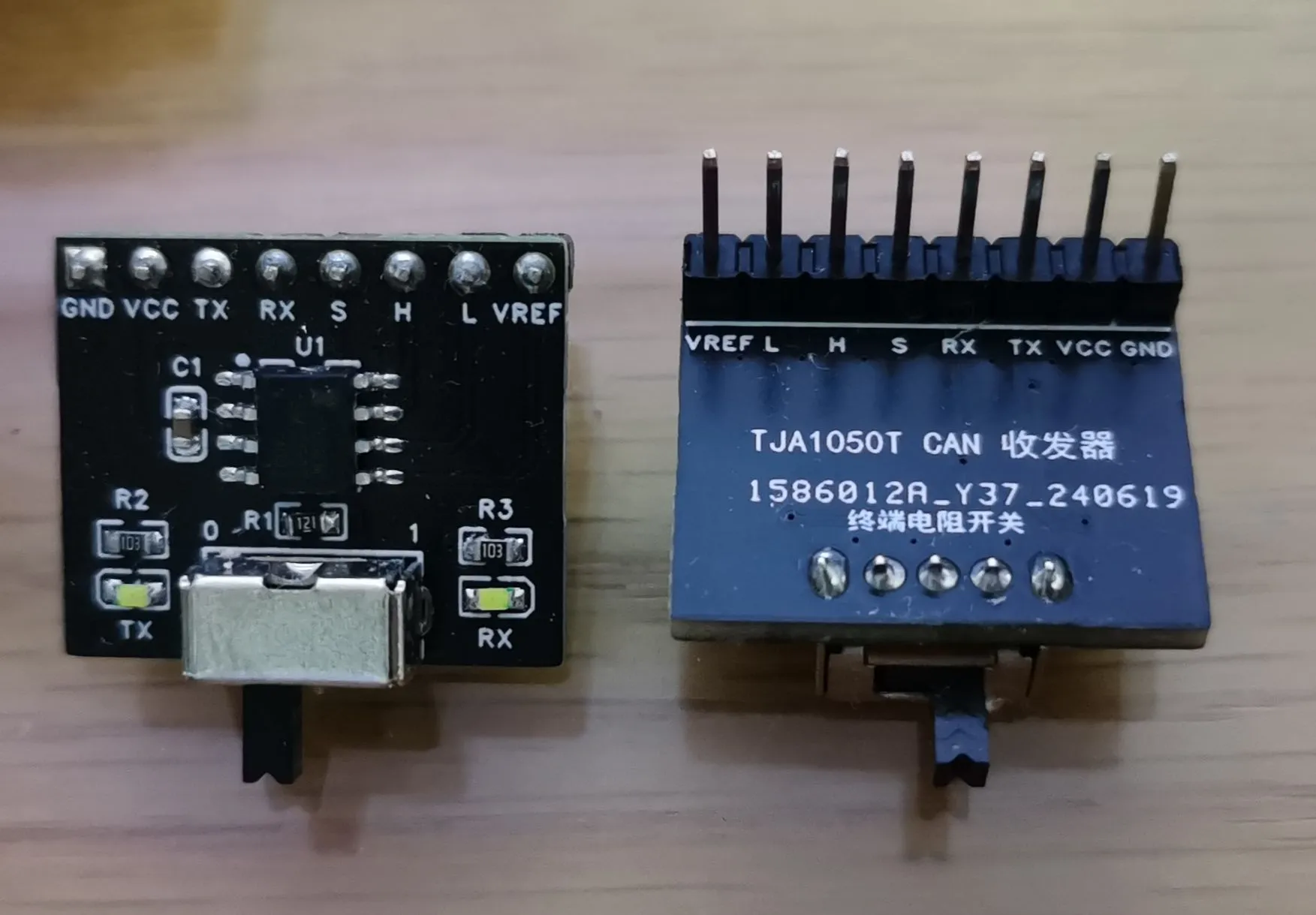

To learn about STM32 CAN communication from Jiangsu University of Science and Technology, I designed a small transceiver board
with the following features:
1. Based on the JSMSEMI (Jiesheng Microelectronics) TJA1050T design, compatible with 16-15mm batteries
; 2. TXRX communication indicator lights for easy observation of bus status;
3. Configurable terminating resistors.
