STM32G030F6P6 Minimum System Board

Overview

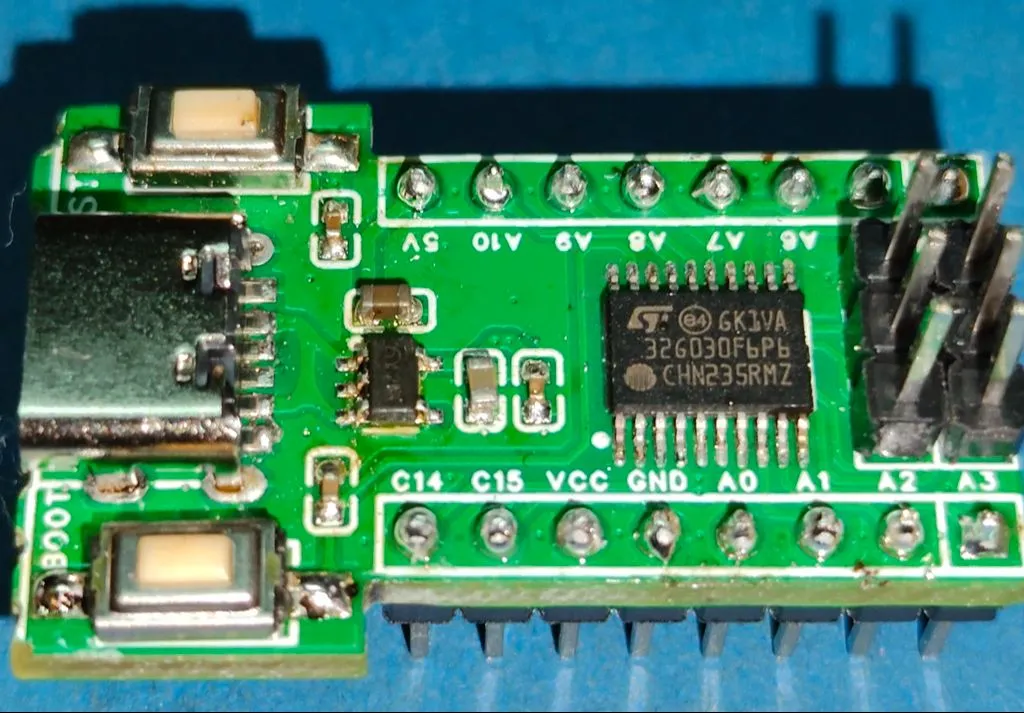

I recently got a few STM32G030F6P6 chips from a Taobao special offer, so I designed a small core board for fun. I referenced the layout of https://oshwhub.com/duya25446/stm32g0, but made significant modifications to the lead-out section (mainly for easier routing). I added a BOOT button for easy programming with a USB-to-serial module. I also added two 5.1k resistors for the Type-C interface, allowing for power supply with a C-to-C charger. The LDO was replaced with a higher current ME6211 for easier screen display.
