Lattice-LCMXO2-256HC-FPGA Core Board

Overview

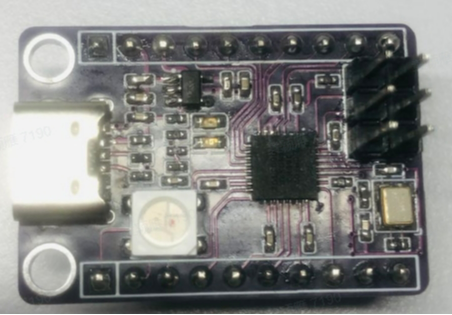

Lattice's FPGA chip LCMXO2-256HC-4SG32C is
used to create a small core board that employs an active crystal oscillator, specifically a 22.579MHz crystal oscillator commonly used in audio circuits, which can be used in conjunction with an ADC/DAC.

![1111.png]

Test code lcomxo2.zip

20240527-123231.mp4

PDF_Lattice-LCMXO2-256HC-FPGA core board.zip

Altium_Lattice-LCMXO2-256HC-FPGA core board.zip

PADS_Lattice-LCMXO2-256HC-FPGA core board.zip

BOM_Lattice-LCMXO2-256HC-FPGA Core Board.xlsx
